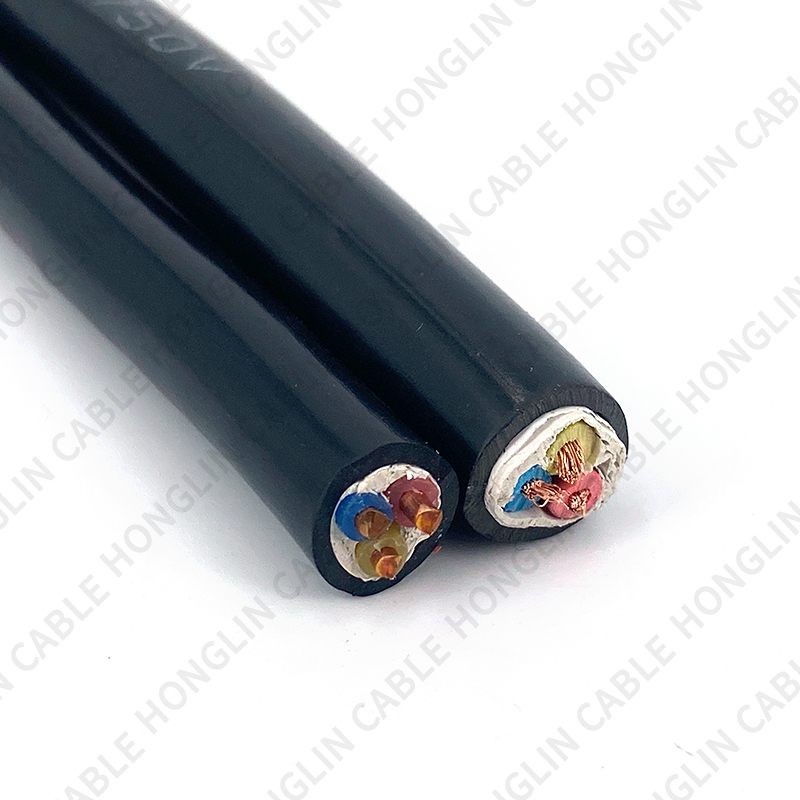

A 3 core control cable is a compact, purpose-built cable that bundles three individually insulated conductors inside a single outer sheath. It’s widely used where a small number of control or power circuits must be routed together cleanly and reliably — think local motor starter feeds, three-phase lighting runs, three-wire valve control, or a combined power-plus-sensor trunk on a machine. The real value of a proper 3 core control cable is predictable electrical behavior, mechanical protection and faster installation compared with separate single-core runs.
When an engineer types this query, they are usually looking for a candidate that fits an immediate technical need. The most important decision factors are conductor area (to control voltage drop and ampacity), insulation type and rating, screening (if EMI is present), temperature range, and jacket chemistry for the environment. A good datasheet answers these fields up front — that’s why catalog product pages dominate the SERP.
There are a few common 3 core control cable constructions you will see in catalogs:
3 core YY / unscreened control cable: economical, flexible, used for indoor interconnects and control panels where EMI is not a concern. Best for short runs and tidy panel wire.
3 core SY / CY screened cable: a foil or foil+braid shield surrounds the cores (often with a drain wire). Ideal when drives, motors or switching gear could inject noise into the control conductors.
Outdoor / duct grade 3 core cable: XLPE/PE insulation, water-blocking tape or gel and a UV/abrasion-resistant outer sheath for buried or ducted feeder runs. Necessary for long trunk routes or external plant wiring.
Flex-rated 3 core: class 5 or 6 fine-stranded conductors and elastomeric jackets for cable-carrier or moving-gantry duty. Use these where repeated motion occurs.
Conductor area is not a cosmetic choice. For a 3 core control cable that carries power to a motor or heater, undersized conductors will cause voltage drop, heat and possible nuisance trips. Use the device datasheet to determine current and the cable manufacturer’s tables to calculate voltage drop for the planned run length. For control signals and small actuators, smaller AWG can be acceptable, but still confirm coil resistance and recommended maximum distance. Datasheets with DCR and temperature ratings let you model real performance.
If your route runs near variable-frequency drives, welders, or heavy power cable bundles, choose a screened 3 core control cable. Shielding prevents induced noise and cross-talk. But the shield only works if terminated correctly: use a dedicated drain conductor, bring the shield to earth at the recommended point (single-end or both ends depending on system grounding practice), and document screen termination in the installation drawings. Good supplier datasheets will include termination recommendations — follow them.
The outer jacket determines longevity in the field. Standard PVC jackets are suitable indoors and in protected trays. Low-smoke, halogen-free (LSZH/FRNC) jackets are often required in public spaces and enclosed areas. For outdoor or direct burial use pick PE or UV-stabilized formulations, and for oily or abrasive factory floors select oil-resistant compounds or polyurethane jackets. Always match the jacket to the actual exposure conditions — it’s cheaper to specify correctly than to re-pull later.
If the 3 core control cable must live in a drag chain or move with a gantry, demand a flex-rated part. Flex cables use finer strands and flexible insulations to survive millions of bending cycles. The vendor should publish an expected flex-cycle rating or specify class 5/6 conductor stranding; this is material when the cable’s service life matters. Avoid fixed-lay cable in moving applications — it’s the most common cause of premature failure.
Correct installation improves every cable’s life. For a 3 core control cable:
Respect minimum bend radius and avoid sharp kinks.
Use intermediate rollers for long pulls and monitor pull tension so you don’t exceed the cable’s maximum.
Keep power and sensitive control runs separated where feasible; cross them at right angles if they must intersect.
Use proper glands and strain reliefs to preserve the sheath and shield terminations.
Suppliers who publish practical pull tension and bend radius numbers make engineering simpler and reduce field surprises.
A 3 core control cable fits many everyday engineering needs:
Local motor feeds for small motors and fans where you need three conductors (line-line-neutral or three control wires).
Local lighting runs and switched circuits in commercial installations.
Small actuator and valve circuits in process plants.
Machine tool subsystems where a compact, three-conductor run ties a small group of devices to a local PLC or starter.
Its compact form factor reduces conduit fill and speeds termination on terminal strips and junction boxes.
When requesting quotes for a 3 core control cable, include these mandatory fields to get comparable offers:
conductor size (AWG or mm²) and strand class,
insulation material and rated voltage/temperature,
shield type and drain conductor details (if screened),
jacket chemistry and environmental rating,
flex rating (fixed vs flex) and min bend radius, and
packaging and sample policy (reels, cut lengths, lead time).
Vendors that return full datasheets and factory test certificates reduce procurement risk and speed approval.
On delivery inspect for correct marking, measure conductor resistance on random samples, and verify insulation resistance. For critical projects require factory test certificates that show DCR, insulation resistance and any environmental test outcomes. Batch traceability enables quick investigation if a field issue appears later — insist on it for large projects. Reputable suppliers make this documentation standard.
Treat the selection of a 3 core control cable as an engineering choice, not a commodity. Specify conductor size to match load and voltage-drop requirements, choose insulation and jacket chemistry to match the environment, and pick screened or flex-rated constructions where noise or motion demand it. Ask suppliers for datasheets, sample reels and test certificates before bulk purchase, and codify installation and screen-termination practice in your handover documents. Do this once and your 3 core control cable will be invisible infrastructure — reliable, maintainable, and low cost over the asset lifetime.
