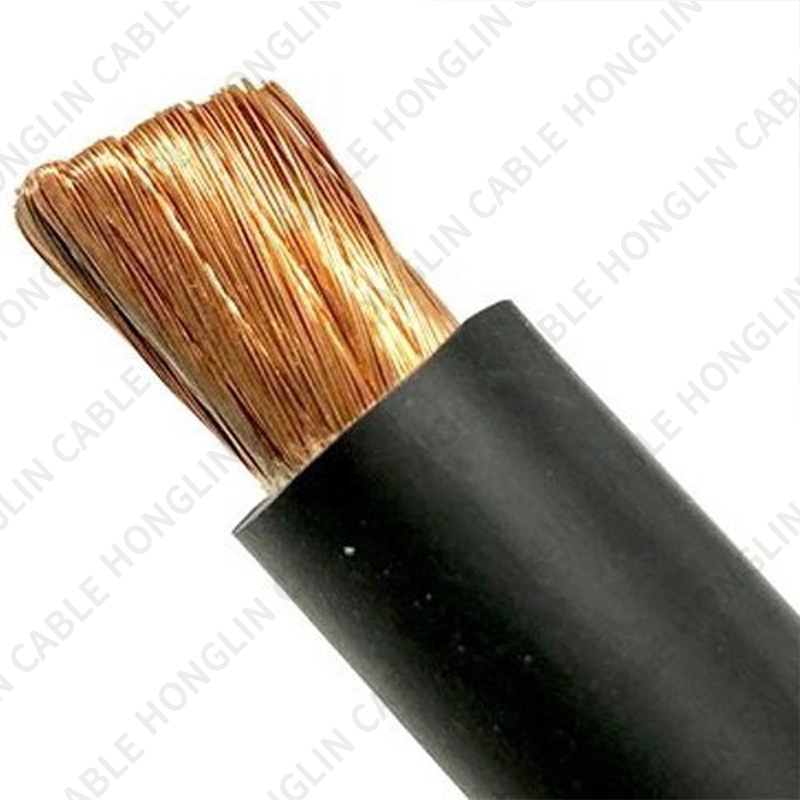

If you’re evaluating a 3 awg welding cable, you’re choosing a lead that must carry current reliably, flex without failure, and terminate cleanly so joints don’t become hot spots. The right 3 awg welding cable will deliver stable arcs, reduce emergency replacements and lower your installed cost per operating hour. The wrong one looks fine on a shelf but fails under real handling.
The phrase 3 awg welding cable names a conductor size but tells you nothing about how the cable is built. Two cables labelled the same can behave very differently in the field: strand count, filament diameter, jacket compound and DC resistance are the real variables that determine flexibility, voltage drop and life. Always require the datasheet for any 3 awg welding cable you consider so you compare real performance, not just a picture.
When crews unspool and re-spool leads hundreds or thousands of times, the conductor’s strand geometry decides how long the cable will last. A 3 awg welding cable built from many fine filaments (rope-lay or high-strand bunch) flexes far more cycles than a coarse-strand alternative. The benefits are clear:
far fewer broken strands at lugs and crimps,
cleaner compression when using proper lugs, and
longer service life on reels that are frequently used.
If your leads see heavy handling — rental fleets, service trucks, production cells — insist on published strand counts for every 3 awg welding cable you buy.
The jacket is the cable’s first line of defense. For an industrial 3 awg welding cable, choose elastomeric jackets (EPDM, neoprene) over thin PVC when exposure includes oils, abrasion, sunlight or low temperatures. Elastomeric jackets:
remain flexible in cold weather,
resist oils, battery acid and many solvents, and
tolerate abrasion and sunlight better than commodity PVC.
A modest premium for a proper jacket translates directly into fewer replacements and less downtime.
Even a correctly sized 3 awg welding cable will show voltage drop on long runs or under heavy pulsed welding current. Use the vendor’s DC resistance (Ω per unit length at 20 °C) to compute round-trip voltage loss at both peak and average currents. Welding produces short, high current pulses; model both surge and continuous cases. If the end-voltage is marginal, increase conductor size or shorten the run rather than accept unstable arc performance.
Most field failures start at the termination. For every 3 awg welding cable assembly:
specify compression lugs that match conductor geometry and stud size, ensuring the lug barrel captures the full strand bundle,
crimp with manufacturer-specified dies and tooling and verify the mechanical hold,
insulate the joint with appropriately sized heat-shrink and strain relief so bending stress is not concentrated at the crimp, and
commission critical joints with a thermal scan while under expected load to identify high-resistance spots early.
If your crew lacks calibrated crimp tools, factor factory-terminated leads into the installed cost — the convenience premium often saves repeated re-terminations.
Practical reel and handling practices multiply the service life of every 3 awg welding cable you own:
use reels with drum diameters that respect the cable’s minimum bend radius,
protect pass-through edges with smooth grommets or guards,
clean jackets before rewinding so grit doesn’t abrade the sheath, and
rotate reel usage so wear is evenly distributed across your inventory.
These inexpensive operational rules cut replacement frequency and improve safety.
Different buying formats make sense for different needs. Per-foot cut lengths and pre-terminated coils are convenient for emergency repairs and small jobs, but they usually cost more per metre than full spools. For fleet outfitting and long-term projects, buying reels or full spools of 3 awg welding cable lowers unit cost and gives you control over termination quality.
A well-specified 3 awg welding cable fits many jobs:
short stinger and ground leads for portable welders,
generator hookups and temporary site distribution,
battery interconnects and inverter feeds on mobile power systems, and
feeder leads for portable motors and compressors.
Match jacket chemistry and strand geometry to the physical and chemical exposure each application will encounter.
For especially demanding duty, these upgrades frequently pay back:
tinned conductors for salt-spray and corrosive atmospheres, which protect strand ends and ease soldering,
ultra-flex constructions with very high strand counts for rental fleets and robotic cells that flex millions of cycles, and
specialty jackets (flame-retardant, low-smoke) where site regulation or safety concerns demand them.
These options add to upfront price but often reduce unscheduled downtime and total life-cycle expense.
To get apples-to-apples offers for 3 awg welding cable, include these mandatory fields in your request:
conductor construction: exact strand count and filament diameter,
DC resistance at 20 °C and ampacity/duty guidance,
jacket chemistry, insulation thickness and rated temperature range,
minimum bend radius and nominal outer diameter, and
packaging/form factor (cut-length vs spool vs pre-terminated) and required test certificates (mill test, insulation resistance, hipot).
Vendors who supply these values make comparison straightforward and reduce the risk of surprise substitutions.
Before accepting mission-critical reels of 3 awg welding cable:
flex the sample on the intended reel to confirm the bend radius is acceptable,
crimp a sample lug and perform a mechanical pull test, and
run a short load while thermal-scanning the termination to ensure no hidden high-resistance spot exists.
A short sample test prevents costly field issues and proves the cable meets the spec you paid for.
A short maintenance routine keeps leads reliable:
visually inspect jackets and terminations before each job,
clean and store reels properly after heavy use,
periodically thermal-scan high-duty terminations, and
retire any cable with exposed conductors or deep jacket damage immediately.
Consistent care converts each 3 awg welding cable into months or years of dependable service.
When you choose a 3 awg welding cable, treat the purchase as an engineering decision: define the duty clearly, insist on strand geometry and DCR on the datasheet, select jacket chemistry to match the environment, and require verified terminations. For mission-critical buys ask for a sample reel and test it in real handling before committing to large volumes. Do this once and your leads will be dependable, safe and cost-effective — exactly the outcome your crew needs.
