Dec. 04, 2025
When you search for a 250 amp welding cable, you’re looking for more than a gauge and a price. You want a lead that will carry heavy welding currents reliably, survive repeated reel-and-unreel cycles, and terminate cleanly so joints remain cool and safe. The smartest purchasers treat a 250 amp welding cable as a systems choice — conductor geometry, jacket chemistry, termination method and handling practices all combine to determine real lifetime value. Below is a practical, original sales article written to help procurement managers, fleet operators and foremen buy the right cable and avoid costly rework.
A 250 amp welding cable sits in a practical range: large enough to support common stick and MIG welding applications at ordinary run lengths, yet still flexible enough to reel, stow and handle in the field. Mobile welders, rental fleets and repair crews favor this rating because it balances current capacity with manageability — but remember, the number “250” tells you an intended current, not conductor construction or durability.
When choosing a 250 amp welding cable, the gauge is only the starting point. Two cables labelled for 250 A can behave very differently if one uses a fine-strand rope-lay conductor with an EPDM jacket and the other uses a coarse strand with PVC sheath. The differences show up quickly in re-termination rates, arc stability and downtime.

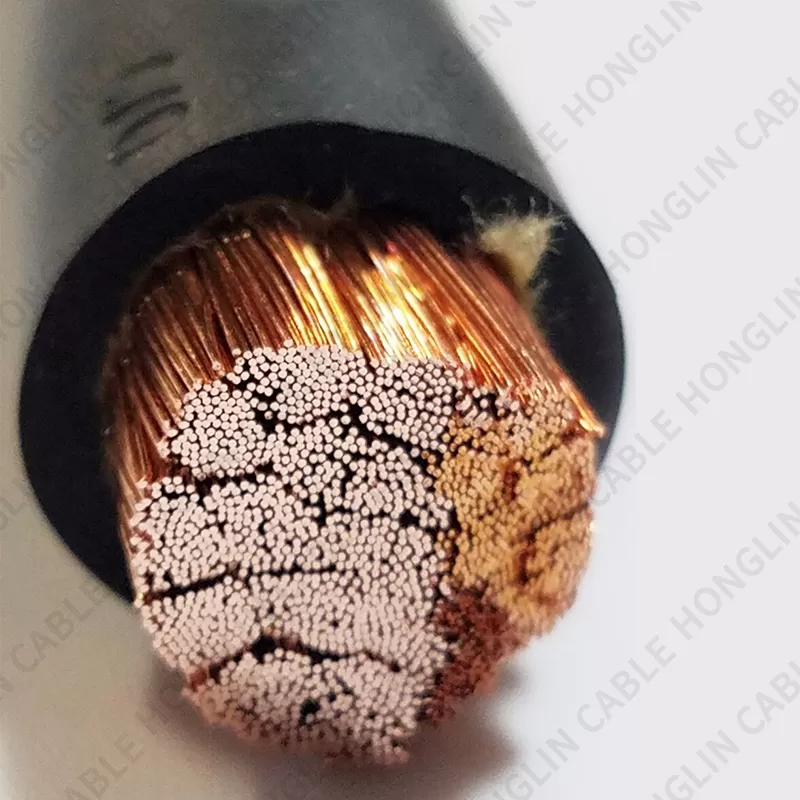

The conductor’s strand geometry is the single most predictive spec for how long a 250 amp welding cable will last in service. Fine-strand, rope-lay constructions distribute bending stresses across thousands of filaments; that means far higher flex life than coarse-strand alternatives. For applications where leads are unspooled and rewound daily — rental fleets, service trucks and busy fabrication cells — insist on strand counts and filament sizes when you evaluate any 250 amp welding cable quote.
Practically speaking, a fine-strand conductor:
flexes many more cycles before fatigue,
crimps cleaner with fewer stray wires in lug barrels, and
reduces the risk of localized strand breakage near terminations.
Those benefits translate directly into fewer emergency replacements and lower installed cost per operating hour.
Your chosen jacket protects the conductor from oils, abrasion, ozone and UV. For a robust 250 amp welding cable, elastomeric compounds (EPDM, neoprene) outperform basic PVC in most industrial environments. Elastomeric jackets:
remain flexible at low temperatures,
resist engine oils, battery acid and many solvents, and
tolerate abrasion and sunlight better than PVC.
If your leads live on trucks, near engines or outdoors, choosing an EPDM-jacketed 250 amp welding cable commonly reduces replacements and emergency downtime — an easy win for operations managers.
Before you finalize any purchase of 250 amp welding cable, require the vendor to supply these numbers:
exact conductor construction (strand count and filament diameter),
DC resistance at 20 °C (Ω per unit length) so you can model voltage drop,
recommended ampacity/duty-cycle guidance for different run lengths, and
jacket chemistry, minimum bend radius and outside diameter for reel planning.
Suppliers who publish these figures let you make apples-to-apples comparisons and avoid surprises when the cable is installed. Practical buyers treat the datasheet as the primary procurement document.
Even a cable rated for 250 amps will exhibit voltage drop over distance. Use the DC resistance from the datasheet to compute round-trip voltage loss at expected peak and average welding currents. Welding duty often involves short high-current pulses; model both surge and continuous cases. If computed end-voltage is marginal, the right fix is usually to increase conductor size or shorten the run — not to accept a lower-spec cable. Correct sizing preserves arc stability, weld quality and equipment health.
Real-world failures usually occur at the termination. For each 250 amp welding cable assembly:
specify compression lugs rated for the conductor and stud; verify the lug barrel fully accepts the strands,
crimp using manufacturer-specified dies and tooling and verify mechanical integrity,
fit heat-shrink and strain-relief boots so bending forces are not concentrated at the lug, and
commission critical joints with a thermal scan under load to catch marginal high-resistance spots.
If you don’t have certified crimp tooling, factory-terminated leads can be worth the premium — they reduce rework and greatly lower the risk of hot-spot failures.
Price per foot varies widely between pre-cut convenience coils and bulk reels. When comparing quotes for 250 amp welding cable, normalize offers to the same technical spec: strand count, DCR, jacket compound and whether the cable is pre-terminated. Bulk spools usually deliver the lowest per-foot cost for fleet outfitting, while pre-cut or pre-terminated items can be justified for emergency replacements or immediate use.
Also be wary of shopping purely by price. A low per-foot quote for a PVC, coarse-strand cable can be a false economy if it fails sooner than a premium EPDM, fine-strand alternative.
Operational habits determine whether a 250 amp welding cable reaches its expected service life. Enforce these simple practices:
use reels that respect the cable’s minimum bend radius,
protect pass-through edges with smooth grommets or guards to prevent chafing,
clean jackets before rewinding to remove grit and filings, and
rotate reel usage to spread wear across all lengths.
Those inexpensive process changes typically multiply mean time between failures and dramatically reduce replacement cost.
Common 250 amp welding cable assemblies include #2 AWG (or metric equivalents) with 35/50 or DINSE connectors, electrode holders and ground clamps. Retailers sell ready-made 15–25 ft stinger/ground pairs for immediate replacement, while industrial suppliers sell by the foot for custom builds. Match connectors to your equipment and verify connector current rating against the cable’s duty.
A simple, repeatable maintenance routine protects your investment:
visual inspection for cuts, gouges and exposed strands before each use,
verify strain relief and lug seating,
thermally scan critical terminations during commissioning and periodically, and
retire any cable with exposed conductors or deep jacket damage.
Make this a short job-site checklist and you’ll avoid most field failures.
For demanding conditions, consider these premium options for a 250 amp welding cable:
tinned conductors for marine or corrosive atmospheres,
ultra-flex constructions with very high strand counts for rental fleets and robotic cells, and
specialty jackets (flame retardant, low smoke) where regulations require them.
These upgrades increase upfront cost but frequently lower whole-life expense by reducing failures and service interruptions.
When you request quotes for 250 amp welding cable, include these mandatory fields:
conductor construction — exact strand count and filament gauge;
DC resistance @20 °C and ampacity/duty guidance;
jacket chemistry, insulation thickness and rated temperature range;
minimum bend radius, outside diameter and packaging (cut-length vs spool); and
required test certificates (mill test, insulation resistance, hipot) and sample acceptance policy.
Vendors who supply these numbers make it easy to select the product that matches duty — and avoid costly substitutions.
When you purchase a 250 amp welding cable, treat the decision as engineering, not shopping. Define the duty profile, insist on strand geometry and DCR on the datasheet, choose the jacket to match the environment and require professional termination and testing. Train crews in simple handling and inspection routines. Do that once and your 250 amp welding cable will be a dependable, long-lived tool that reduces downtime, replacements and total operating cost — exactly the outcome every operations manager wants.
