Dec. 02, 2025

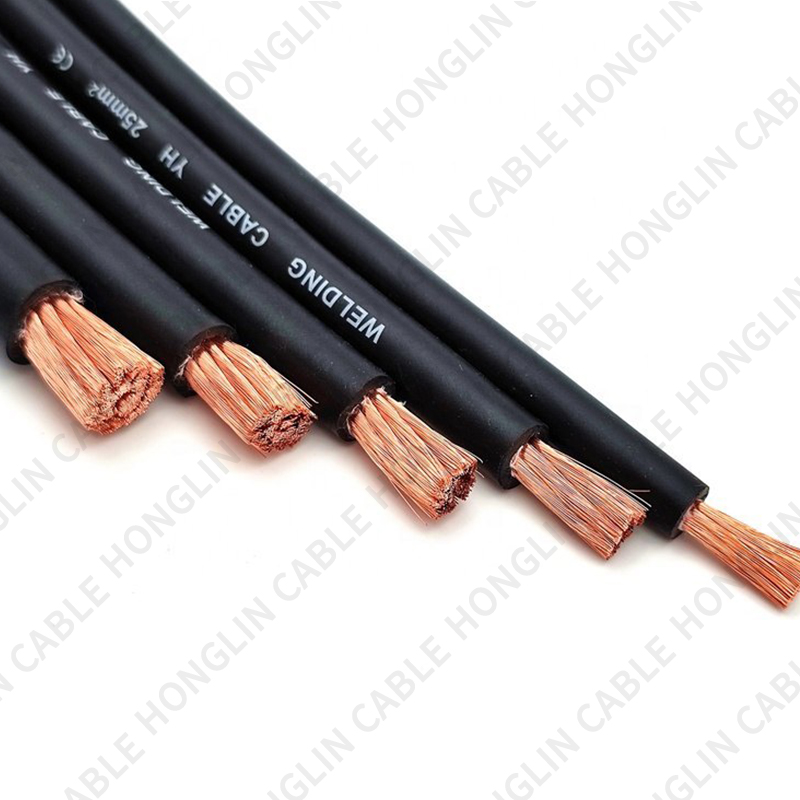

A 2 copper welding cable is more than a piece of wire; it’s a work tool that must carry high welding currents reliably while surviving being reeled, dragged, and re-terminated day after day. For mobile welders, rental fleets, and maintenance shops, the difference between a cheap lead and the right 2 copper welding cable is the difference between constant rework and uninterrupted productivity. Pick the right construction and jacket chemistry, and that single purchase will pay for itself many times over.
When crews ask for a 2 copper welding cable, they’re usually balancing current capacity and manageability. A 2 AWG conductor supports significant welding current at short to moderate runs and is compact enough to be handled and reeled by one person. That makes 2 copper welding cable popular for stingers, ground leads, generator jumpers, and battery interconnects where a larger cross-section would be unwieldy.
Two cables can both be labeled 2 copper welding cable but feel and last very differently. The conductor’s strand geometry — how many individual filaments make up the conductor — determines flex life. Very fine-strand rope-lay construction produces a pliable lead that resists fatigue when reeled repeatedly. For applications where the lead is unspooled and rewound daily, choose a 2 copper welding cable with a high strand count — it’s the best predictor of long service life.
The jacket is the cable’s armor. For heavy-duty work, EPDM or neoprene jackets (Flex-A-Prene style) keep the 2 copper welding cable flexible in cold, resist oil and ozone, and tolerate abrasion and sunlight far better than standard PVC. A properly specified jacket prevents brittle failures and saves replacement cost. If your leads live near engines, diesel, or aggressive chemicals, match the jacket chemistry to the exposure.
Never buy a 2 copper welding cable sight unseen. Ask suppliers for these published figures:
conductor construction (exact strand count and filament diameter),
DC resistance at 20 °C (Ω per 1000 ft or Ω per metre),
rated voltage and operating temperature range, and
minimum bend radius and outside diameter.
Those numbers let you calculate voltage drop, check thermal margins, and plan reel and storage requirements instead of guessing from a photo.
A 2 copper welding cable has good ampacity for many portable welding tasks, but long runs and welding peaks still require calculation. Use the DCR to compute round-trip voltage drop at expected peak and continuous currents. Welding equipment has high short peaks; if your modeled end-voltage is marginal, step up conductor size or shorten the run — both are cheaper than poor welds or stressed inverter electronics.
Most cable failures appear at the termination rather than mid-span. For a dependable 2 copper welding cable assembly:
select compression lugs sized for 2 AWG and the stud, ensuring the lug barrel fully captures the strands,
crimp with the die the lug manufacturer specifies and verify mechanical integrity,
fit heat-shrink and strain relief so bending forces aren’t concentrated at the crimp, and
commission critical joints with a thermal scan under load to detect high-resistance spots early.
A proper termination preserves the conductor’s low resistance and prevents dangerous heating.
Even a premium 2 copper welding cable will wear out fast with bad habits. Protect your leads with these simple rules:
choose reels with drum diameters that respect the cable’s minimum bend radius,
protect pass-throughs with grommets or chamfered edges to avoid chafing,
clean jackets before rewinding to remove grit and metal filings, and
rotate reel usage so wear is distributed across stock.
These low-effort routines dramatically increase mean time between failures.

A 2 copper welding cable is commonly used for:
portable stingers, whips, and ground leads,
generator hookup and temporary site distribution,
battery interconnects and inverter feeds for mobile power, and
feeder leads for portable motors and compressors.
Pick jacket and strand geometry to match the environment — for example, EPDM jackets and high-strand conductors for rental fleets and outdoor work.
Sometimes a premium cable is the smartest buy. Consider these upgrades for a 2 copper welding cable when duty is severe:
tinned conductors for marine or salt-spray exposure,
oxygen-free copper or specially annealed conductors for marginal conductivity gains, and
ultra-flex constructions with extremely high strand counts for millions of flex cycles.
These features increase upfront cost but often lower total cost by reducing replacements and downtime.
A low sticker price on a 2 copper welding cable can be misleading. Include termination labour, expected replacement interval, and downtime cost when comparing per-foot prices. Many operations find that a modest premium for a high-strand, EPDM-jacketed 2 copper welding cable yields the lowest cost per operating hour.
To get apples-to-apples quotes for 2 copper welding cable, include these mandatory fields:
conductor construction (strand count + filament gauge),
DC resistance @20 °C and any ampacity/duty tables,
jacket chemistry, thickness and rated temperature range,
minimum bend radius, outside diameter and packaging (pre-cut vs spool), and
required test certificates (mill test, insulation resistance, hipot) and a sample acceptance policy.
A precise RFQ forces suppliers to provide the actual technical numbers you need.
Teach crews this 60-second pre-use routine for each 2 copper welding cable:
visually inspect the jacket for cuts, flattening or exposed strands,
confirm lugs are fully seated and strain relief is fitted, and
look for discoloration near terminations that suggests prior overheating.
A quick check prevents the majority of field failures and improves safety.
A short maintenance program keeps leads reliable:
log reel IDs and batch numbers for traceability,
clean and inspect jackets after heavy use,
thermal-scan critical terminations during commissioning and periodically, and
retire any cable with exposed strands or deep jacket damage.
Consistent care converts a higher initial investment in a 2 copper welding cable into long, dependable service.
When you buy a 2 copper welding cable, treat the purchase as a systems decision: require a specified strand geometry for flex life, choose jacket chemistry that matches site conditions, insist on DCR and temperature ratings on the datasheet, and ensure terminations are performed and verified by trained staff. Do these things once and your leads will be dependable, safe and cost-effective for years — which is the outcome every crew and procurement manager wants.
