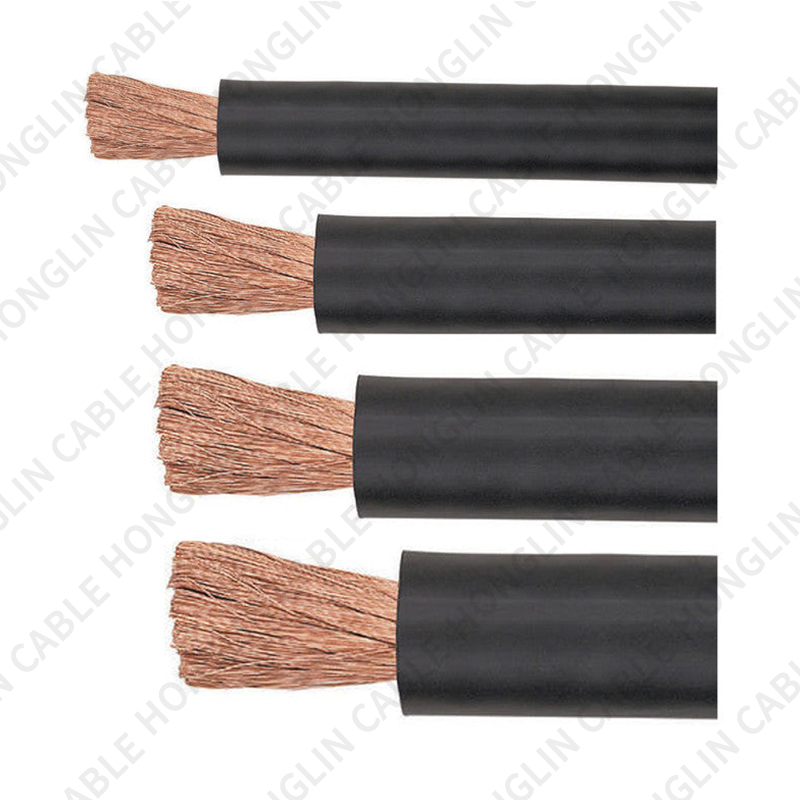

If you’re shopping for a 2 0 welding cable, you want more than a length of copper with a jacket. You want a lead that carries heavy welding currents, resists abrasion and oils, survives repeated reeling, and terminates cleanly so joints don’t become fire hazards or service failures. The right 2 0 welding cable saves downtime, reduces replacement cycles, and keeps weld quality consistent — which is the real return on a good purchase.
A 2 0 welding cable occupies a practical sweet spot: large enough to support substantial welding and inverter currents over short to moderate runs, yet compact enough to be reeled, stored and handled by a single operator. For mobile welders, service trucks and small fabrication shops it often balances ampacity and portability better than bulkier cross sections. Choosing the right construction and jacket is what differentiates a dependable 2/0 lead from a frequent replacement.
“2 0” gives the conductor area, but it doesn’t tell you the things that matter in the field. When you evaluate any 2 0 welding cable, require the supplier to provide:
conductor strand count and filament diameter (strand geometry),
DC resistance at 20 °C (Ω per length) for voltage-drop calculations,
rated voltage and operating temperature range, and
minimum bend radius and overall diameter for reel planning.
Two products labeled 2 0 welding cable can behave very differently if one uses a rope-lay of many fine filaments and an EPDM jacket and the other uses coarse strands with a thin PVC sheath.

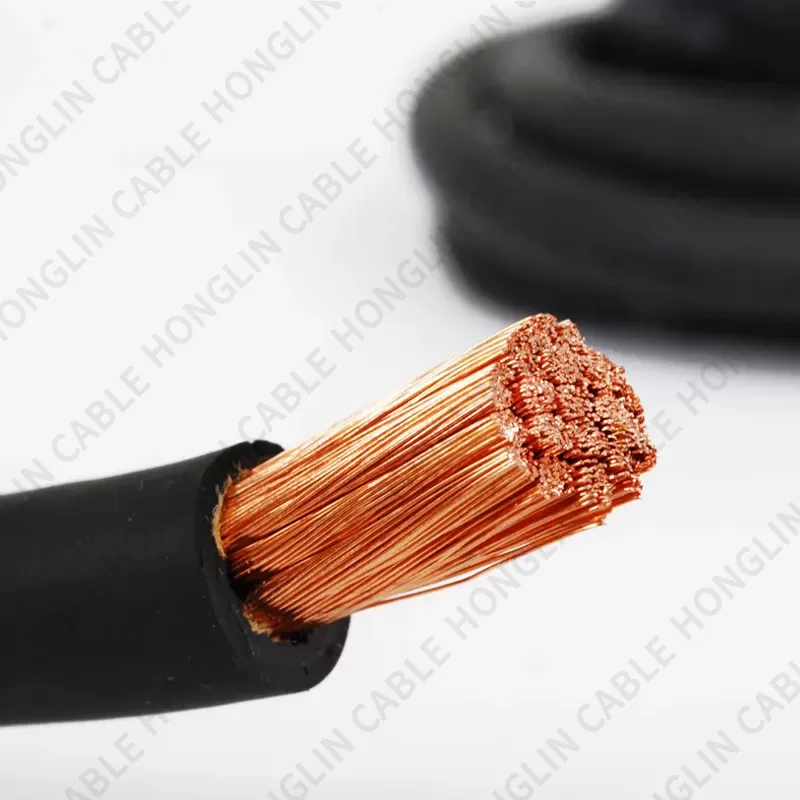

The conductor’s strand geometry is the main determinant of flex life. A 2 0 welding cable built from many fine filaments (rope-style or Class K) flexes far more cycles before failure than a coarse-stranded alternative. Benefits of a fine-strand conductor include:
dramatically higher bending and reel life,
cleaner compression in lugs with fewer stray wires, and
lower probability of strand breakage at bends or terminations.
If your leads are reeled and handled daily — rental fleets, production cells or service trucks — ask explicitly for strand count and flex class.
The jacket is the cable’s armor. For heavy use, choose EPDM or neoprene elastomer jackets that remain flexible in cold, resist oil and ozone, and stand up to abrasion and sunlight. A 2 0 welding cable with an EPDM jacket will typically last far longer on open yards and engine rooms than a PVC jacket, which hardens and cracks sooner under mechanical stress and chemical exposure.
A 2/0 conductor reduces voltage drop compared with smaller sizes, but run length and welding peaks still matter. Use the supplier’s DC resistance number to calculate round-trip voltage drop at expected peak and average currents. Welding duties often include high short peaks; check both peak and duty-cycle values. If modeled end-voltage is marginal, step up the conductor or shorten the run — the small additional copper cost is usually cheaper than poor welds or stressed electronics.
Most field problems show up at the termination, not mid-span. For any 2 0 welding cable assembly:
use compression lugs sized for the conductor and stud; ensure the lug barrel fully captures all strands,
crimp with the die specified by the lug manufacturer and verify the mechanical hold,
apply heat-shrink and strain-relief boots so bending stresses do not concentrate at the lug, and
commission critical joints with a thermal scan under load to detect high-resistance points early.
A proper termination preserves the conductor’s low resistance and prevents hot-spot failures that damage equipment or create safety hazards.
How crews treat reels determines service life. For each 2 0 welding cable in your fleet:
use reels with a drum diameter that respects the cable’s minimum bend radius,
protect pass-through edges with smooth grommets to prevent chafing,
clean jackets before rewinding to remove grit that abrades the sheath, and
rotate reel usage so wear is spread across lengths.
Adopting these simple practices dramatically increases mean time between failures and lowers lifecycle costs.
A 2 0 welding cable is ideal for:
portable stinger and ground leads for fabrication and repair,
generator hookup and temporary power distribution,
battery interconnects and inverter feeds in mobile power systems, and
feeder leads for portable motors, compressors and heavy tooling.
For each application, match jacket chemistry and strand geometry to the expected environment and mechanical stresses.
When duty or environment is severe, premium features justify their price:
tinned or oxygen-free copper options for improved corrosion resistance and stable conductivity,
ultra-flex constructions with very high strand counts for extreme reel/unreel cycles, and
low-smoke, halogen-free or flame-retardant jackets for regulated installations.
A modest premium for a well-spec’d 2 0 welding cable commonly reduces replacements and downtime enough to more than offset the initial cost.
To obtain comparable quotes, include these fields when requesting a 2 0 welding cable:
conductor construction: exact strand count and filament diameter;
DC resistance at 20 °C and any ampacity/duty-cycle charts;
jacket/insulation chemistry and rated temperature range;
minimum bend radius, outside diameter and packaging (cut-to-length vs reel); and
required test certificates (mill test, hipot, insulation resistance) and sample acceptance policy.
A precise RFQ forces apples-to-apples supplier responses and prevents substitution with lower-performing cables.
Unit price per foot is only the starting point. Consider installed cost: termination labour and tooling, expected replacement interval based on flex and environment, and the cost of downtime when a lead fails. Often a higher per-foot price for a premium 2 0 welding cable (high strand count + EPDM jacket) produces a lower cost per operating hour through fewer replacements and less emergency maintenance.
Teach crews this 60-second pre-use routine for every 2 0 welding cable:
visually inspect the jacket along the full length for cuts, gouges, flattening or exposed strands;
confirm lug barrels are properly engaged and strain relief is in place; and
look for discoloration or deformation near terminations that could indicate past overheating.
A quick check prevents most field failures and enhances safety.
A short, repeatable maintenance program keeps leads reliable:
log reel IDs and batch numbers for traceability and warranty claims,
clean and visually inspect jackets after heavy use,
thermally inspect critical terminations during commissioning and periodically, and
retire any cable with exposed strands or deep jacket damage immediately.
Consistent care converts a higher initial investment into long, dependable service.
When you buy a 2 0 welding cable, treat the purchase as a systems decision: choose conductor geometry for flex life, select jacket chemistry that matches exposure, demand DC resistance and temperature ratings on the datasheet, and ensure professional termination and inspection. Do this and your 2/0 leads will be dependable, safe and cost-effective tools that keep crews productive and reduce long-term costs.
