2 0 gauge welding cable — a buyer-focused guide and sales narrative

When you specify a 2 0 gauge welding cable, you’re asking for a lead that must balance two demands: carry heavy welding or battery currents with low voltage loss, and survive the mechanical abuse of frequent reeling, dragging and re-terminating. The right 2 0 gauge welding cable delivers clean arc performance, simple and reliable terminations, and a long service life that lowers your total operating cost. (1)

Why 2 0 gauge welding cable is the go-to for many crews

A 2 0 gauge welding cable commonly sits at the sweet spot between bulk and portability: large enough to handle high transient welding currents and inverter loads, but compact enough to be reeled and handled by a single operator. Choosing a quality 2 0 gauge welding cable is not just about copper area — it’s about conductor geometry, jacket chemistry and attention to termination practices that together determine whether the lead will be a dependable tool or a recurring headache. (2)

What the label “2 0 gauge welding cable” tells you — and what it doesn’t

The term 2 0 gauge welding cable identifies conductor size (2/0 AWG) and implies a welding or battery duty. But it does not reveal the strand count, strand diameter, the jacket compound, the DC resistance at 20 °C, or the minimum bend radius — all the numbers you need to model voltage drop, expected thermal rise and reel life. Always demand the datasheet; a responsible supplier will publish strand breakdown and Ω/km (or Ω/1000 ft) so you can compare apples to apples. (3) awcwire.com

Conductor construction — why strand geometry is everything

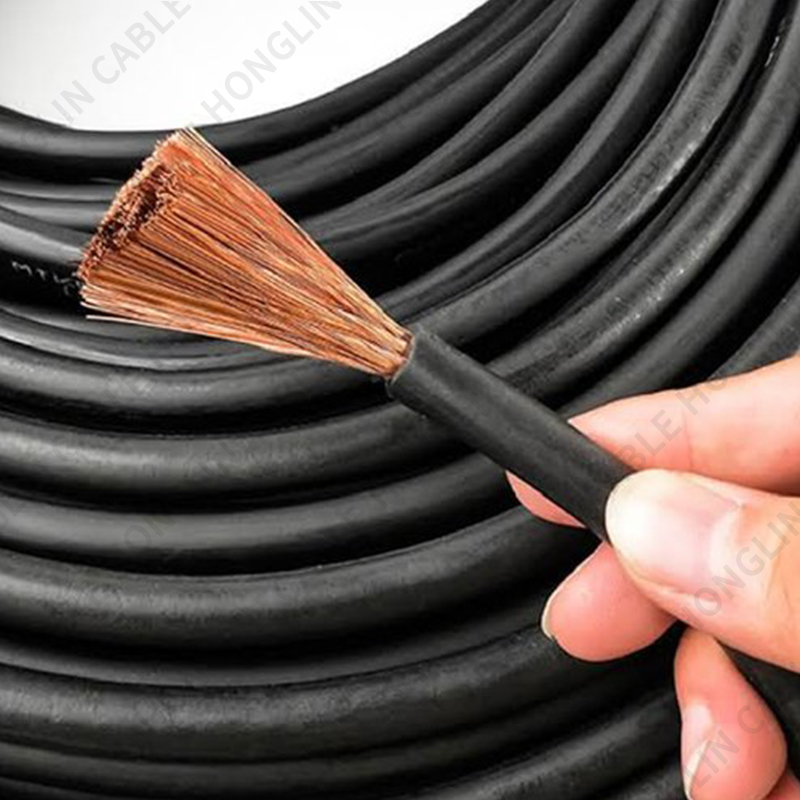

The practical difference between a 2 0 gauge welding cable that fails quickly and one that lasts for years is almost always the conductor construction. Fine-strand, rope-lay conductors (hundreds or thousands of filaments) yield:

• dramatically higher flex-fatigue life when reels are repeatedly unspooled and rewound;

• cleaner, more reliable crimps with fewer stray wires; and

• lower risk of localized strand fracture at bends and terminations.

When you specify a 2 0 gauge welding cable, require the strand count. That single number predicts in-service flexibility and longevity far better than cross-section alone. iewc.com

Jacket and insulation — choose chemistry that matches the jobsite

The jacket is the cable’s armor. For heavy use choose an EPDM or neoprene elastomer (Flex-A-Prene®-style) that remains soft in cold, resists oils and chemicals, and tolerates abrasion and UV. If your 2 0 gauge welding cable lives near engines, diesel, grease or open yards, a high-quality EPDM jacket will outlast basic PVC many times over and justify a modest price premium. (4) airgas.com+1

Ratings and the key numbers you must demand

Before you buy any 2 0 gauge welding cable, insist the supplier provides:

• exact conductor construction (strand count and filament diameter),

• DC resistance at 20 °C (Ω per km or per 1000 ft) for voltage-drop calculations,

• rated voltage and operating temperature range (many are 600 V class, −50 °C to +105 °C), and

• minimum bend radius and nominal outer diameter for reel planning.

Those figures turn marketing into engineering decisions and avoid surprises under load.

Sizing and voltage drop — practical checks you can live with

A 2 0 gauge welding cable offers substantial ampacity, but run length and duty cycle determine whether it’s the correct choice. Use the published DC resistance and your expected peak and average welding currents to model round-trip voltage drop. If the end-voltage is marginal for arc stability or inverter input, step up gauge or shorten the run — it’s far cheaper than poor welding results or stressed electronics. Always check both surge and continuous thermal limits. (5)

Termination — joints are the weak link; treat them as part of the product

Most field failures show up at terminations. Make the termination part of your specification:

• use compression lugs sized for 2/0 and the stud diameter; ensure the lug barrel fully captures all strands,

• crimp with tooling specified by the lug maker and perform mechanical checks where practical,

• use heat-shrink and strain-relief boots so bending stresses don’t concentrate at the crimp, and

• commission critical joints with a thermal scan during initial load testing.

A great 2 0 gauge welding cable with poor crimps will still fail early; conversely, a good crimp on a quality cable preserves low resistance and safety.

Handling and reel practices — small habits, big payoff

Simple procedures extend cable life enormously:

• choose reels with drum diameters that respect minimum bend radius,

• protect pass-throughs with smooth grommets to avoid edge cuts,

• clean jackets before rewinding to avoid embedding grit that abrades the sheath, and

• rotate reel usage so the same length is not always the most abused.

These operational habits multiply mean time between failures for every 2 0 gauge welding cable in your fleet.

Typical applications — where 2/0 leads make sense

Common uses for a 2 0 gauge welding cable include:

• portable welding stingers/whips and ground leads for field fabrication,

• generator hookup leads and temporary power distribution,

• battery interconnects and inverter feeds for mobile power systems, and

• feeder leads for portable motors and compressors.

In each case choose jacket chemistry and strand geometry to match expected mechanical and environmental stress.

Premium features that are worth the extra cost

In brutal duty cycles, premium choices save money:

• tinned conductors for marine and corrosive atmospheres,

• ultra-flex rope constructions for rental fleets and robotic cells, and

• high-temperature or flame-retardant jackets where safety codes require them.

A slightly higher per-foot cost for a proven 2 0 gauge welding cable often reduces downtime and replacement expense significantly.

Procurement checklist — what to include in your RFQ

To obtain apples-to-apples quotes, include these fields:

1. conductor construction: strand count and filament diameter;

2. DC resistance at 20 °C and any ampacity/duty tables;

3. jacket chemistry, thickness and rated temperature;

4. minimum bend radius, outer diameter and packaging options (pre-cut vs spool); and

5. required test certificates (mill test, hipot, insulation resistance) and sample acceptance policy.

This checklist prevents substitutions and speeds procurement.

Maintenance routine — minutes per shift that save hours

Adopt a short routine:

• visual inspection for cuts, nicks and exposed strands before each job,

• periodic thermal scanning of critical terminations,

• immediate removal of any cable with exposed copper, and

• logging reel IDs and batch numbers for traceability and warranty handling.

Small, consistent checks prevent the majority of cable failures and keep crews productive.

Final recommendation — buy to duty, not to picture

When you specify a 2 0 gauge welding cable, treat the purchase as a systems decision: require strand geometry for flex life, pick jacket chemistry suited to the environment, demand DC resistance and temperature ratings on the datasheet, and insist on professional terminations and inspection. Do that and your leads will be dependable, safe and cost-effective tools rather than recurring problems.
