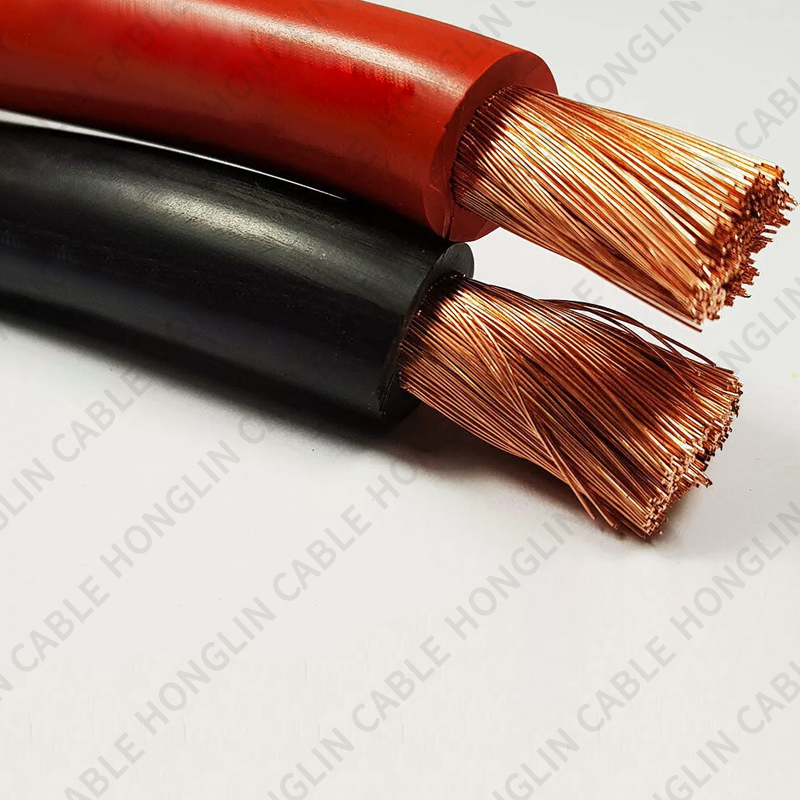

2 0 flexible welding cable — built for frequent reels and heavy work

When a crew asks for a 2 0 flexible welding cable, they’re asking for a tool that must do two jobs well: carry very high current with minimal voltage loss and survive the physical abuse of daily use. That combination — electrical performance plus mechanical durability — is what separates a cable that lasts years from one that’s back in the toolbox for replacement every other month. The right 2 0 flexible welding cable delivers clean arcs, predictable thermal behaviour and long term cost savings.

What “2 0” tells you — and what you must still check

The “2 0” designation (2/0 AWG) tells you nominal conductor area, which anchors ampacity and voltage-drop math. But it won’t tell you how the cable feels when it’s reeled, how it resists oil and abrasion, or how reliable the crimps and lugs will be. When evaluating a 2 0 flexible welding cable, insist upon strand count, DC resistance at 20 °C, jacket chemistry (EPDM, neoprene, etc.), rated voltage and minimum bend radius. Those numbers let you compare offerings on what matters in the field, not marketing.

Why strand geometry matters more than gauge

Two 2/0 cables can be electrically similar on paper yet behave very differently in practice. A 2 0 flexible welding cable built from many fine filaments — Class K or equivalent — will flex far more reliably than a coarse-stranded alternative. The field benefits are immediate:

• far higher flex fatigue life when reels are unspooled and rewound,

• cleaner compression in lugs and fewer stray strands, and

• lower risk of fractured strands near terminations.

If you reel and unreel leads daily — rental fleets, service trucks, production rigs — ask suppliers for the strand breakdown and a flex-cycle test or certificate.

Jacket chemistry — armor for the real world

Jacket choice determines whether your 2 0 flexible welding cable survives engine rooms, shop floors and outdoor yards. EPDM and neoprene jackets retain flexibility at low temperatures, resist oil and ozone, and tolerate abrasion much better than basic PVC. Many trusted Flex-A-Prene-style products advertise a low-smoke, halogen-free EPDM jacket rated from about −50 °C to +105 °C — specs that translate into fewer brittle failures and longer service life.

Datasheet numbers you must demand

Don’t accept a photo and a price. Convert a per-foot quote into engineering certainty by requesting:

• conductor construction (strand count and filament gauge),

• DC resistance at 20 °C (Ω per 1000 ft or Ω per metre),

• rated voltage and operating temperature range, and

• minimum bend radius and outside diameter.

These figures let you calculate voltage drop for your expected run length and ensure the cable’s thermal limits are appropriate for the duty cycle.

Sizing for voltage drop — practical checks for the field

A 2 0 flexible welding cable is often used for leads, battery interconnects and generator hookups. For any run length you should:

1. Use the supplier’s DCR to calculate round-trip voltage drop at the expected welding current.

2. Check both peak welding current and average duty cycle — welders have very high short peaks.

3. If modeled end-voltage is marginal, increase conductor size rather than accept poor arc or stressed electronics.

Proper sizing avoids unstable arcs, overheating and frustrated crews.

Termination is part of the product — do it right

In practice, most failures show up at terminations. For a reliable 2 0 flexible welding cable assembly:

• use compression lugs rated for 2/0 and the stud dimension; ensure the lug barrel fully captures the strands,

• crimp with the tooling specified by the lug maker and inspect the crimp,

• apply heat-shrink and strain-relief boots so bending forces don’t concentrate at the joint, and

• commission critical connections with a thermal scan under expected load.

A professional termination preserves low resistance and prevents hot spots that can damage both cable and equipment.

Handling and reel practices that extend life

Even a premium 2 0 flexible welding cable will wear out fast with bad habits. Institute these simple practices:

• choose reels with a drum diameter that respects the cable’s minimum bend radius,

• protect pass-throughs with grommets or guards to avoid edge cuts,

• clean jackets of grit and metallic dust before rewinding, and

• rotate the use of reels so wear is evenly distributed.

These small operational changes dramatically lengthen the useful life of each lead.

Where 2/0 flexible leads are used most

Practical applications for a 2 0 flexible welding cable include:

• portable stinger leads and whips for fabrication and repair,

• generator to distribution temporary feeds,

• battery interconnects and inverter feeds for mobile or backup systems, and

• portable motor or compressor feeds where movement and current capacity are both required.

For each application select a jacket and conductor geometry that match mechanical and environmental stresses.

Premium options that pay back

If you run rental fleets, robotic welding cells or work in marine/corrosive environments, consider premium variants:

• tinned conductors for corrosion resistance at terminations,

• oxygen-free or specially annealed copper for marginal conductivity gains under extreme loads, and

• ultra-flex constructions with extremely high strand counts for million-cycle flex life.

The slightly higher per-foot cost for a top-end 2 0 flexible welding cable often reduces lifecycle cost through fewer replacements and less downtime.

Procurement checklist — what to include in your RFQ

To compare quotes fairly for a 2 0 flexible welding cable, include these mandatory items:

1. conductor construction: strand count and filament gauge;

2. DC resistance at 20 °C and ampacity/duty charts;

3. jacket/insulation chemistry, thickness and rated temperature;

4. minimum bend radius, outside diameter and packaging options (pre-cut vs spool); and

5. required test certificates and sample acceptance criteria.

This makes supplier responses comparable and reduces the risk of receiving the wrong product.

Price vs total cost of ownership — buy to duty, not just to price

A low per-foot price is tempting but often misleading. Cheaper 2/0 cable with coarse strands and poor jackets cost more over time via replacements, emergency labour and downtime. Evaluate installed cost: include termination labour, replacement interval, and potential operational impact. Many teams find a modest premium for an EPDM-jacketed, high-strand 2 0 flexible welding cable pays for itself in reduced failure rates.

Quick on-site checks that prevent failures

Teach crews a 60-second pre-use check:

• visual sweep for cuts, gouges or crushed sections;

• verify that lugs are fully seated and heat-shrink is intact; and

• look for discoloration or softened jacket near terminations that indicate overheating.

A quick check prevents the majority of field failures and improves safety.

Maintenance rhythm — small effort, big gains

A short maintenance program keeps leads reliable:

• log reel IDs and batches for traceability,

• clean and inspect jackets after heavy use,

• thermally inspect critical terminations during commissioning, and

• retire any cable with exposed strands or deep jacket damage.

Consistent maintenance converts a higher initial investment into long, dependable service.

Final recommendation — specify, test, protect

When you order a 2 0 flexible welding cable, treat the purchase as systems engineering: require strand geometry for flex life, choose jacket chemistry to match exposure, demand DCR and temperature ratings on the datasheet, and ensure terminations are done and inspected by trained staff. Do that and your leads will be dependable assets that keep crews productive and reduce whole-life cost.
