When someone orders a 2 0 flex a prene welding cable, they usually mean business: a rugged, highly flexible 2/0 conductor with a proven EPDM rubber jacket built to survive repeated reeling, abrasion and oil exposure. The name carries expectations — it must bend without breaking, terminate cleanly, and keep voltage drop low during heavy welding currents. Put plainly: the right 2 0 flex a prene welding cable makes routine jobs smoother and emergency repairs rarer.
“2 0” identifies conductor size, and “Flex-A-Prene” (or equivalent) signals an EPDM-style elastomeric jacket and fine-strand rope conductor. But those words alone don’t ensure performance. Before you commit, confirm the strand count, DC resistance at 20 °C, rated voltage and the minimum bend radius. Ask for a datasheet so you can compare apples to apples; a true 2 0 flex a prene welding cable will publish those numbers and back them with test data.

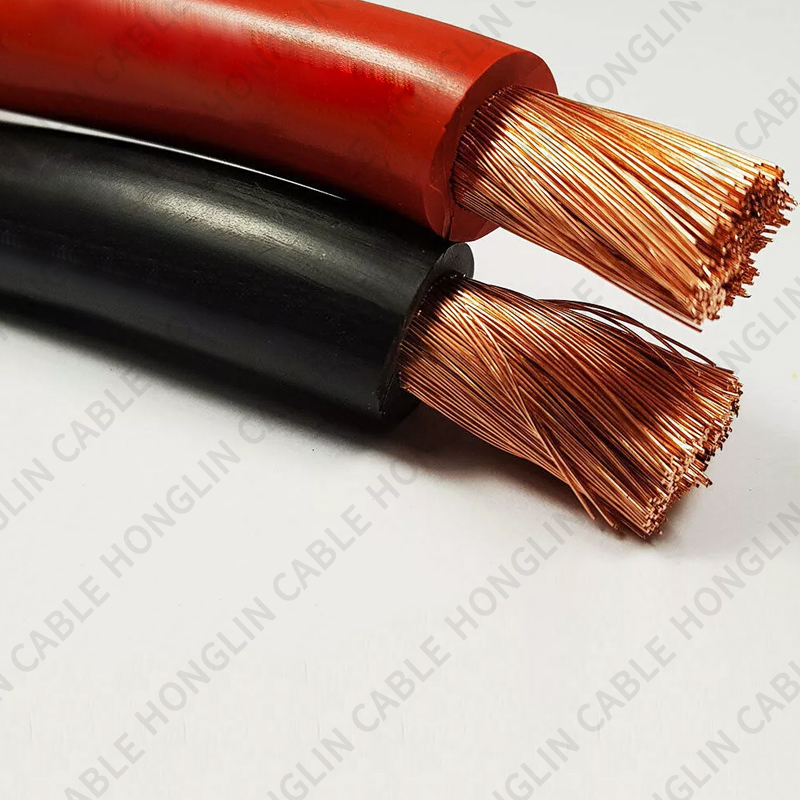

The single most important real-world attribute for any 2 0 flex a prene welding cable is how the conductor is stranded. Rope-lay, very fine filaments (often 30 AWG-class filaments bundled in hundreds) make the 2/0 cable feel like a rope: pliable, forgiving and resistant to fatigue. That construction:
substantially increases bending cycles to failure,
gives cleaner crimps in compression lugs, and
reduces stray wires and fractured filaments at terminations.
If your operation reels and unreels leads daily, insist on the strand breakdown — it’s the best predictor of how long that 2 0 flex a prene welding cable will last.
Flex-A-Prene style jackets (EPDM compound) are chosen because they remain flexible at low temperatures, resist oils and ozone, and tolerate abrasion — essential qualities for welding leads that drag over steel, concrete and engine rooms. A 2 0 flex a prene welding cable with a quality EPDM jacket keeps its flexibility in winter, won’t crack from oil exposure, and resists sunlight better than ordinary PVC. For marine or chemical exposure consider tinned conductors or specialty jackets — but for general heavy-duty use, EPDM is the trusted choice.
Don’t buy sight unseen. For a 2 0 flex a prene welding cable require:
strand count and filament diameter (exact conductor construction),
DC resistance at 20 °C (Ω/1000 ft or Ω/m) for voltage-drop work,
rated voltage (typically 600 V) and operating temperature range,
minimum bend radius and outside diameter, and
any relevant standards/certifications (e.g., SAE J1127 where applicable).
These figures let you do the engineering checks that prevent poor fit-for-purpose purchases.
A 2/0 conductor gives a lot of ampacity in a relatively compact package, but long runs and welding peaks change the picture. Use the DC resistance value to calculate voltage drop for the expected duty (both continuous and peak currents). A properly specified 2 0 flex a prene welding cable will keep end-voltage within equipment tolerances at the job’s typical distances. If your calculations show marginal voltage, step up the size or shorten the run — the cost of an extra spool or a higher gauge often beats poor welds or damaged inverters.
Most cable failures show up at terminations, so treat the lug as part of the product. For a reliable 2 0 flex a prene welding cable assembly:
use a lug sized to the conductor geometry and stud,
crimp with the die the lug manufacturer specifies and verify the mechanical crimp,
fit a strain-relief boot and heat shrink to keep bending forces off the lug, and
commission assemblies with a thermal check under load to catch high-resistance joints before they become a problem.
A great termination turns a good cable into a dependable lead; a poor termination turns even the best 2 0 flex a prene welding cable into a safety risk.

Even premium cable dies sooner with bad habits. Protect your 2 0 flex a prene welding cable with these simple rules:
select reels with a drum diameter that respects the cable’s minimum bend radius,
route through grommets/guards to avoid edge cuts,
clean the jacket before rewinding to remove grit and metal shavings, and
rotate reel use so wear is distributed across stock.
These inexpensive routines multiply useful life and reduce replacement cost dramatically.
A well-made 2 0 flex a prene welding cable is versatile. Typical uses include:
portable welding leads for field repair and fabrication,
stingers and whips for production welding stations,
battery interconnects and inverter feeds in mobile power systems, and
generator hookup leads for construction and emergency power.
Across each use, pick jacket chemistry and strand geometry to match the mechanical and environmental stresses the cable will face.
There are times to pay up for extras. If you run rental fleets, robotic welding cells, or operate in salt-spray or chemical atmospheres, consider:
tinned conductors for corrosion resistance,
ultra-flex constructions with very high strand counts for extreme fatigue life, and
double-insulated or flame-retardant jackets where regulations or hazards demand it.
These upgrades increase the upfront cost of a 2 0 flex a prene welding cable but lower whole-life cost where duty is extreme.
To get apples-to-apples quotes for 2 0 flex a prene welding cable, include these fields in your RFQ:
conductor construction (strand count + filament diameter),
DC resistance at 20 °C and ampacity/duty charts where applicable,
jacket chemistry, rated temperature and thickness,
minimum bend radius, outer diameter and packaging (pre-cut lengths vs spools), and
required test certificates and sample acceptance criteria.
A precise RFQ cuts substitution risk and speeds procurement of the right cable for the job.
A low per-foot price might look attractive, but coarse strand construction and thin jackets produce earlier failures, higher labour for replacements, and more downtime. For most fleets, a modest premium for a verified 2 0 flex a prene welding cable pays back in reduced replacements and fewer emergency repairs. Think installed cost, not sticker price.
Keep your leads healthy with a short routine:
quick visual inspection before each job for cuts or exposed strands,
thermal scan of critical terminations during commissioning and after heavy use,
immediate removal of cables with deep cuts or exposed copper, and
log reel IDs and batch numbers for traceability and warranty claims.
A few minutes of care extends cable life and prevents many on-site failures.
Don’t buy by gauge alone — always get strand count and DCR.
If you lack certified crimp tooling, consider factory-terminated leads or insist vendor verifies crimp records.
For fleet outfitting, buy reels in bulk to lower per-ft cost; for emergency repairs, keep a few pre-cut 2 0 flex a prene welding cable on the truck.
Match jacket chemistry to site conditions — EPDM for oily/abrasive environments, specialty jackets for marine or fire-rated spaces.
These simple rules prevent costly returns and warranty headaches.
When you order a 2 0 flex a prene welding cable, treat the purchase as systems engineering: specify strand geometry for flex life, choose jacket chemistry for real exposures, require datasheet numbers for DCR and thermal limits, and ensure terminations are done and verified properly. Do this once and you’ll find your leads last far longer, perform better and cost less over their working life.
