When your team searches for a 2 0 awg welding cable, they usually want two things in one purchase: reliable electrical performance and rugged mechanical life. That means a cable that carries high currents with low voltage drop and a jacket and conductor construction that stand up to repeated reeling, abrasion and jobsite chemistry. This guide explains what to look for on product pages, how to size and terminate leads, and why a properly specified 2 0 awg welding cable will save you downtime and money in the long run.
The name 2 0 awg welding cable tells you the conductor size, which is a useful starting point for ampacity and voltage-drop calculations. However, the cross-section alone does not tell you how flexible the cable will be, how it will behave when re-reeling, or how resistant the jacket will be to oil and abrasion. Two cables labeled the same gauge can perform very differently if one uses a high-strand rope conductor and EPDM jacket and the other uses coarse strands with a cheap PVC sheath. Always check the datasheet before you buy.

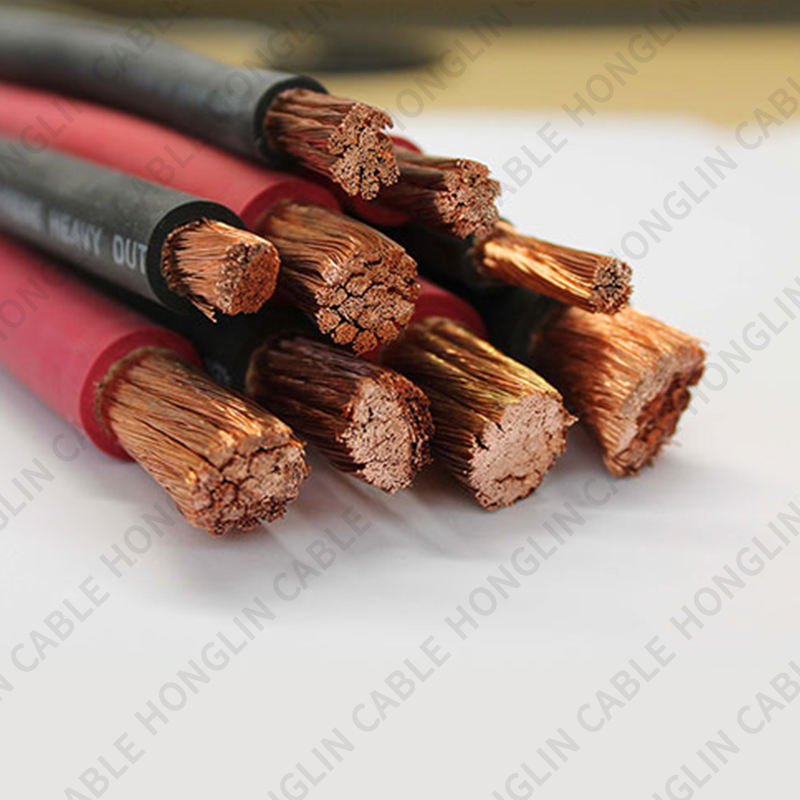

For most real-world welding and mobile power tasks, the conductor’s strand geometry determines flex life and termination quality. A 2 0 awg welding cable built from many fine filaments (a rope of hundreds or thousands of thin wires) will:
withstand many more flex cycles on reels,
crimp more uniformly into lugs with fewer stray wires, and
resist fracture near terminations where bends concentrate stress.
If your crews reel and unreel leads frequently — rental fleets, service trucks or busy shops — insist on a fine-strand Class K or equivalent designation for any 2 0 awg welding cable you buy.
The jacket protects the conductor from the environment. For heavy use choose elastomeric compounds such as EPDM or neoprene; they remain flexible at low temperatures, resist oils, ozone and abrasion, and tolerate sunlight better than basic PVC. A 2 0 awg welding cable with an EPDM jacket is a safer long-term buy in oily engine rooms, outdoor yards and harsh workshops. PVC jackets can work for light indoor tasks, but expect earlier replacement in rugged conditions.
A reliable order begins with numbers. Before placing a purchase for a 2 0 awg welding cable, require the supplier to provide:
exact conductor construction (strand count and filament diameter),
DC resistance at 20 °C (Ω/1000 ft or Ω/m) for voltage-drop math,
rated voltage and operating temperature range, and
minimum bend radius and outside diameter.
These figures let you calculate end-voltage and thermal margins and compare products scientifically rather than visually.
A 2 0 awg welding cable is often used for short to moderate welding leads, battery interconnects and generator hookups. To size correctly:
Use the DC resistance to compute voltage drop over the intended run length at both peak and continuous currents.
For welding duty — high short peaks and lower averages — consult ampacity tables specific to welding duty cycles.
If the end-voltage under load is marginal, step up to a larger conductor rather than accept poor arc stability or stressed equipment.
This approach avoids poor weld quality and unexpected reorders.
Most field problems show up at terminations, not mid-span. For any 2 0 awg welding cable assembly:
use compression lugs sized for the conductor and stud; ensure the barrel accepts all strands,
crimp with manufacturer-specified dies and verify the mechanical hold,
use heat-shrink and strain-relief boots so bending forces do not concentrate at the lug, and
commission critical joints with a thermal scan under load to catch high-resistance connections early.
A properly made joint maintains the conductor’s low resistance and prevents dangerous hot spots.
Even the best 2 0 awg welding cable will fail early if handled poorly. Teach crews these simple habits:
use reels with a drum diameter that respects the cable’s minimum bend radius;
protect pass-through points with grommets or edge guards to avoid chafing;
clean jackets before rewinding to remove grit that abrades and cuts the outer sheath; and
rotate reel usage so wear is distributed evenly across the fleet.
Small changes in handling produce large gains in mean time between failures.
You’ll commonly use a 2 0 awg welding cable for:
hand-held welding leads for repair and fabrication,
battery interconnects and inverter feeds in vehicles and backup power systems,
generator hookup leads for temporary distribution on job sites, and
portable motor and compressor feeds where mobility and current capacity are both needed.
For each application, pick the jacket chemistry and strand geometry that matches the mechanical and environmental stress expected.
There are situations where paying more up front is the right decision. Consider these premium variants for a 2 0 awg welding cable:
tinned conductors for marine or salt-spray environments to reduce corrosion risk,
oxygen-free or specially annealed copper for marginal conductivity gains in high-sensitivity applications, and
ultra-flex constructions with extremely high strand counts for rental fleets and robotic systems that flex thousands of cycles.
Premium features often yield lower lifecycle costs by reducing replacements and downtime.
To get apples-to-apples quotes for a 2 0 awg welding cable, include these fields in your RFQ:
conductor construction: exact strand count and filament diameter;
DC resistance at 20 °C and ampacity/duty-cycle tables if available;
jacket/insulation chemistry and rated temperature range;
minimum bend radius, outer diameter and packaging (cut-to-length vs spool); and
required test documentation (mill test, hipot, insulation resistance) and sample acceptance policy.
A precise RFQ prevents substitutions and ensures that the cable delivered meets your operational needs.
A low sticker price for a 2 0 awg welding cable can be misleading. Coarse-strand conductor and a low-grade jacket may save upfront cost but lead to more frequent replacements, higher labour for terminations and potential downtime. When you evaluate quotes, factor in termination labour, expected replacement interval, and the cost of unscheduled downtime. Typically, a modest premium for a high-strand, EPDM-jacketed 2 0 awg welding cable reduces total cost per operating hour.
Protect your leads with a short maintenance routine:
visual inspection for jacket cuts, gouges or flattening;
thermal checks of critical terminations during commissioning and after heavy use;
immediate removal and repair of cables with exposed conductors; and
logging reel IDs and batch numbers for traceability and warranty claims.
Routine care prevents most field failures and extends the useful life of every 2 0 awg welding cable in service.
Never buy on gauge alone — require strand count and DC resistance.
If you lack certified crimping tools, consider factory-terminated leads to ensure proper joints.
For fleet purchases, buy reels rather than short cuts to lower per-foot cost.
Match jacket chemistry to exposure — don’t pick PVC for oily, outdoor sites.
Following these tips will keep your leads working longer and crews safer.
When you purchase a 2 0 awg welding cable, treat it as a systems decision: pick conductor geometry for flex life, choose a jacket suited to the environment, require datasheet numbers for DCR and thermal limits, and ensure proper termination and inspection. Do that and your leads will be dependable, low-maintenance tools that save time and money on the jobsite.
