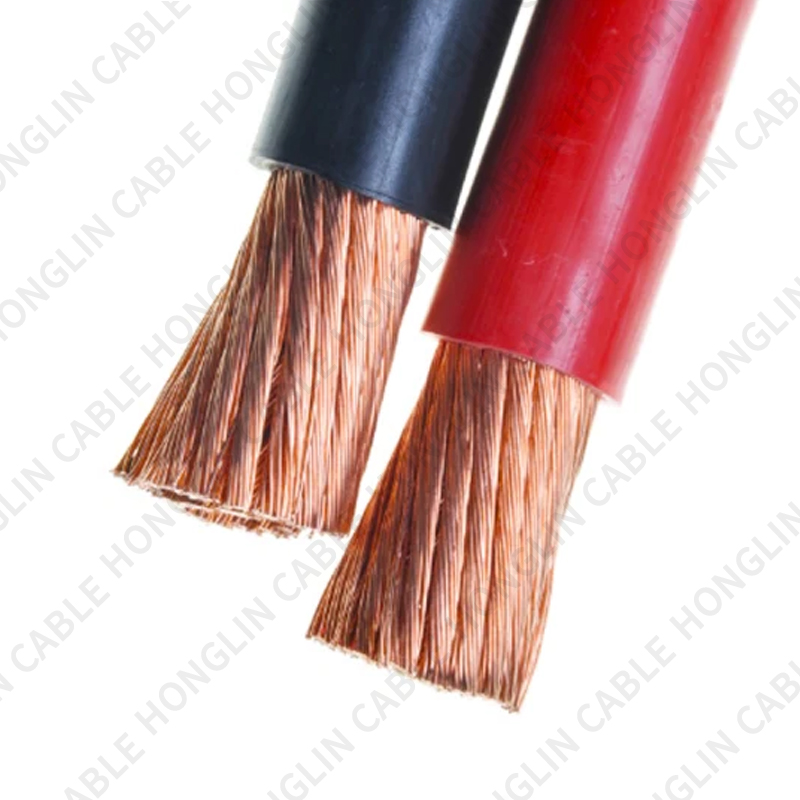

16mm welding cable — the practical choice for mobile work and workshop use

If you’re looking at a 16mm welding cable, you’re balancing current capacity, flexibility and durability. That 16 mm² cross-section is a popular, pragmatic size: it carries meaningful welding and battery currents while remaining light and flexible enough to be reeled, handled and stored without bulky reels. But the nominal size alone doesn’t guarantee performance — strand geometry, jacket chemistry and correct termination determine whether that lead is a long-lived tool or a recurring problem on the job.

Why 16 mm² is a go-to size

Maintenance teams, mobile welders and small fabricators pick a 16mm welding cable because it’s an economical compromise. It’s large enough to limit voltage drop for short to moderate runs, and small enough to be handled easily by one person. For routine generator hookups, battery interconnects or portable welding leads, a well-specified 16mm welding cable minimizes set-up time and reduces the need for awkward parallel runs or frequent splices.

What “16mm” doesn’t tell you — the specs that matter

The label 16mm welding cable only identifies cross-section. It doesn’t reveal how the conductor is built, how the jacket will behave in oil or cold, or how the cable will terminate. Before you buy, insist on these datasheet items: strand count, DC resistance at 20 °C (for voltage-drop math), rated voltage and operating temperature range, minimum bend radius and outer diameter. Those numbers let you model performance and compare suppliers accurately.

Conductor construction — why strand geometry decides flex life

The single most important practical attribute is how the copper is stranded. A 16mm welding cable built from many fine filaments behaves like a rope: it flexes, resists fatigue and crimps cleanly. Coarse-strand constructions may be cheaper, but they frequently fail earlier where the cable bends or at the lug. For any cable that will be reeled and unreel repeatedly, require a documented strand count or a “flex” class on the datasheet — it’s the best predictor of real-world life.

Jacket chemistry — match the jacket to the environment

A 16mm welding cable survives or fails depending on its jacket. For workshop and outdoor use choose elastomeric jackets (EPDM, neoprene or advanced rubber compounds) because they stay flexible in cold weather, resist oils and ozone and stand up to abrasion. PVC jackets are acceptable for light, protected indoor use but harden and crack sooner in harsh conditions. Match jacket chemistry to the exposure and you’ll get dramatically longer service life.

Voltage drop and ampacity — do the math before you buy

Even at 16 mm², long runs cause voltage drop. Use the supplier’s DC resistance figure to calculate end-voltage at your expected welding or continuous current. Welding duty often has high short peaks and lower averages; consult ampacity tables targeted to welding duty cycles rather than generic continuous current charts. If your calculation shows marginal end-voltage for the equipment, step up to the next size or shorten the run — the small additional copper cost is usually far less than the cost of poor weld quality or equipment stress.

Terminations — the joint that makes or breaks reliability

Most field failures show up at the termination, not mid-span. A 16mm welding cable assembly deserves the right lug and tooling:

• use compression lugs sized for 16 mm² and the stud; ensure the lug barrel captures all strands;

• crimp with the correct die and tooling and verify the mechanical crimp; a poor crimp increases resistance and heat;

• fit strain-relief boots and heat-shrink to keep bending forces off the lug; and

• commission critical joints with a thermal scan under load to detect high-resistance points early.

Proper termination keeps the effective resistance low and prevents dangerous hot spots.

Handling and reel practices — habits that extend service

How crews treat cables matters. For every 16mm welding cable in your fleet:

• use reels with a drum diameter that respects the manufacturer’s minimum bend radius,

• protect pass-throughs with grommets to prevent chafing,

• clean jackets before rewinding to avoid embedding grit that abrades the sheath, and

• rotate reel usage to distribute wear across lengths.

These small practices multiply the useful life of a lead and cut replacement frequency.

Typical applications where 16 mm² shines

A 16mm welding cable is well suited to:

• portable welding leads for site repairs and light fabrication,

• battery interconnects and inverter feeds in vehicles and backup systems,

• generator hookup leads for temporary distribution, and

• flexible feeder leads for compressors and portable motors.

For each use, pick jacket chemistry and strand geometry that match the mechanical and environmental stresses expected.

When premium features are worth it

There are situations where spending more per metre pays back quickly. Consider premium choices for high-abuse or corrosive environments:

• tinned conductors — protect strands and terminations from corrosion in marine or salt-spray conditions,

• ultra-flex constructions — very high strand counts for extreme reel/unreel cycles (rental fleets, robotic cells), and

• flame-retardant or double-insulated jackets — for hazardous locations or extra mechanical protection.

A modest premium for the right 16mm welding cable reduces downtime and replacement costs where duty is extreme.

Buying checklist — what to specify in your RFQ

To get comparable quotes for a 16mm welding cable, include these mandatory items:

1. conductor construction: exact strand count and filament diameter;

2. DC resistance at 20 °C and rated voltage;

3. jacket/insulation chemistry and operating temperature range;

4. minimum bend radius, outside diameter and packaging (cut-to-length or reel); and

5. required test certificates (mill tests, insulation resistance, hipot) and sample acceptance policy.

A clear RFQ forces apples-to-apples offers and avoids surprises on delivery.

Price vs total cost of ownership — think lifecycle, not sticker

Per-metre price for a 16mm welding cable varies by strand construction, jacket chemistry and order quantity. Short cut lengths and pre-terminated kits carry a convenience premium; bulk reels bring unit cost down for fleet procurements. But the cheapest per-metre option often costs more in practice: poor strand geometry and brittle jackets lead to earlier replacement and higher labour downtime. Evaluate installed cost — include termination labour and expected replacement frequency — when comparing quotes.

Quick on-site checks before use

Teach crews these fast pre-use checks for every 16mm welding cable:

• scan the jacket for cuts, flattening or gouges along the length;

• check that terminations show full lug engagement and that strain relief is installed; and

• look for discoloration or deformation near lugs that may indicate past overheating.

A moment of inspection prevents most field failures and safety incidents.

Maintenance routine — a few minutes that save hours

A short, repeatable maintenance program extends cable life dramatically:

• log reel IDs and batch numbers for traceability and warranty claims,

• clean and visually inspect cables after heavy use,

• thermally inspect critical terminations during commissioning, and

• retire any cable with exposed strands or deep jacket cuts.

Adopting this routine protects crews and reduces emergency replacements.

Final recommendation — specify precisely, terminate properly, inspect often

When you order a 16mm welding cable, treat it as a systems decision: select conductor geometry for flex life, choose jacket chemistry for the environment, demand DC resistance and temperature ratings on the datasheet, and insist on professional termination and inspection. Do that and your 16mm welding cable inventory will be reliable, safe and economical to operate — saving time, money and headaches on every job.
