In the high-intensity world of industrial welding and electrical engineering, your equipment is only as resilient as its weakest link. For those working in extreme thermal environments or requiring maximum maneuverability, the cable is often that critical link. Enter the Pansil UL 200ºC 1000V Silicone Welding Cable—a high-spec solution designed to thrive where standard rubber and PVC cables fail.
Whether you are managing a robotic welding line, an EV battery testing facility, or heavy-duty manual welding operations, the "Pansil" name represents a leap forward in material science. In this guide, we dive deep into why the 200ºC thermal rating and 1000V dielectric strength make this silicone lead the definitive choice for 2026’s industrial standards.
Most traditional welding cables utilize EPDM (Ethylene Propylene Diene Monomer) or specialized PVC. While these are adequate for general-purpose work, they possess inherent "glass transition" limits and thermal degradation points that silicone easily surpasses.
The Pansil UL cable is rated for a continuous operating temperature of 200ºC. In practical terms, this means:
Heat Resistance: It can withstand accidental contact with hot metal workpieces without the insulation melting or smoking.
Cold Flexibility: Unlike PVC, which becomes brittle and cracks in sub-zero temperatures, silicone remains supple down to -60ºC.
Longevity: Operating at high temperatures doesn't "cook" the insulation, preventing the premature hardening and cracking that leads to dangerous short circuits.

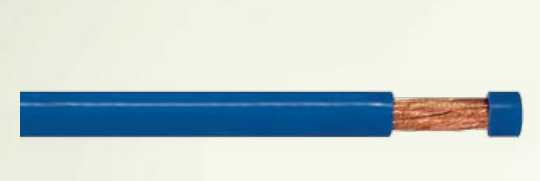

Welder fatigue is a real productivity killer. A stiff cable fights the welder’s wrist movements. Because silicone is naturally more elastic than rubber, and because Pansil utilizes an extremely high strand count of fine Tinned Copper, this cable handles more like a soft rope than a stiff pipe.
When you look at the technical markings on a Pansil cable, every character tells a story of safety and performance.
Most standard welding leads are rated for 600V. Pansil raises the bar to 1000V. This higher dielectric strength is critical for:
High-Frequency Inverter Welders: Modern welding machines can produce high-voltage spikes during the arc-start phase. 1000V insulation provides an extra margin of safety.
Multi-Use Applications: This cable isn't just for welding; its 1000V rating allows it to be used in power battery systems, solar energy storage, and internal wiring for high-voltage industrial ovens.
Pansil uses high-purity Tinned Copper rather than bare copper. The tin coating provides two massive benefits:
Anti-Corrosion: It prevents the copper from oxidizing (turning green) when exposed to moisture or humid factory environments.
Solderability and Connectivity: Tinned copper ensures a better, lower-resistance connection when crimping lugs or soldering terminals, which is vital for maintaining high current flow without heat buildup at the connection point.
In the North American and global markets, the UL (Underwriters Laboratories) mark is the gold standard for safety.
Flame Retardancy: Silicone is naturally flame-retardant. When exposed to direct fire, the Pansil UL cable doesn't produce the thick, toxic black smoke associated with burning rubber. Instead, it forms a non-conductive "ash" (silica) that can, in some cases, continue to provide a level of insulation during a fire emergency.
Chemical Resistance: Factories are messy. This cable is engineered to resist oil, grease, and common industrial solvents that would typically swell and rot a standard rubber jacket.
The Pansil UL 200ºC 1000V is a "hybrid" cable that bridges the gap between traditional welding leads and high-temperature power cables.
In automotive assembly plants, robotic arms move 24/7. The repetitive bending stress (torsion) would snap the strands of a low-flex cable. Pansil’s fine stranding and silicone jacket are built for millions of flex cycles.
EV battery packs and motor controllers operate at high voltages and generate significant heat. The 1000V rating and 200ºC tolerance make Pansil the go-to choice for test benches and internal battery interconnects.
From shipyards in the arctic to foundries where ambient temperatures exceed 50ºC, the silicone jacket ensures the cable remains workable and safe regardless of the external climate.
| Feature | Standard Rubber Cable (EPDM) | Pansil Silicone UL |
| Max Temp | 90°C - 105°C | 200°C |
| Voltage Rating | 600V | 1000V |
| Flexibility | Moderate (stiffens in cold) | Excellent (supple in all temps) |
| Chemical Resistance | Low to Moderate | High |
| Longevity | 3-5 years in harsh use | 10+ years |
Choosing the correct size is about balancing Amperage (Current) and Voltage Drop. Because the Pansil cable can handle higher temperatures (200ºC), it technically has a higher "ampacity" than a PVC cable of the same size. However, for the best performance, always refer to the following general guide:
8 AWG - 6 AWG: Ideal for small TIG/MIG machines and signal power.
4 AWG - 2 AWG: The "sweet spot" for most professional manual welding leads.
1/0 - 4/0 AWG: Heavy-duty industrial welding, grounding, and battery banks.
Note: For 1000V applications, ensure that your connectors and lugs are also rated for the same voltage and temperature to avoid "bottlenecks" in your system.
Procurement managers often look at the initial price per meter. While silicone is a premium material compared to PVC, the Total Cost of Ownership (TCO) is significantly lower.
Zero Downtime: No more stopping production because a cable jacket melted or cracked.
Safety Compliance: Meeting UL standards protects your facility from liability and ensures it passes safety inspections.
Operator Efficiency: A more flexible cable leads to better weld quality and less operator fatigue, directly impacting your bottom line.
A: High-quality silicone cables like Pansil are treated to have a "matte" finish. This reduces surface friction, ensuring they don't stick to each other in a cable tray or drag on the shop floor.
A: Yes. The 1000V rating and 200ºC thermal limit make it one of the safest choices for high-output lithium battery banks and energy storage systems (ESS).
A: No, standard copper lugs work perfectly. However, because it is tinned copper, we recommend using tinned copper lugs to maintain the highest level of corrosion resistance across the entire connection.
The shift toward higher efficiency and higher safety margins in 2026 demands equipment that can keep up. The Pansil UL 200ºC 1000V Silicone Welding Cable is more than just a wire; it is a thermal shield and a performance enhancer for your most critical operations.
Stop settling for cables that harden, crack, and fail when the heat is on. Switch to the ultra-flexible, high-voltage reliability of Pansil.
Contact our technical distribution team today for bulk quotes, custom cutting, and full technical datasheets. Experience the power of silicone.
