If you’re searching for a 100 welding cable, you want a lead that reliably carries current and survives the jobsite. A 100-foot lead is a practical length for many field welding and temporary power needs: it gives reach across common work areas while keeping voltage drop and handling weight reasonable. But “100 feet” alone doesn’t guarantee performance — strand geometry, jacket chemistry and termination quality determine whether that lead will be a dependable tool or a recurring maintenance headache.
A properly specified 100 welding cable balances reach and performance. It reduces the need for multiple splices, lets a single reeled lead reach most locations on a small site, and avoids excessive drag and weight that shorter multi-section assemblies create. When operators choose a 100-ft lead made with flexible conductor and a durable jacket, they gain mobility without sacrificing arc stability — and that saves set-up time across dozens of jobs.
“100 ft” tells only the length. When you evaluate any 100 welding cable, insist on these datasheet numbers:
exact conductor construction and strand count (this predicts flex life),
DC resistance at 20 °C (used to calculate voltage drop),
rated voltage and operating temperature range, and
minimum bend radius and overall diameter for reel and conduit planning.
Vendors who publish these values make it easy to compare products and guarantee performance on the first job.

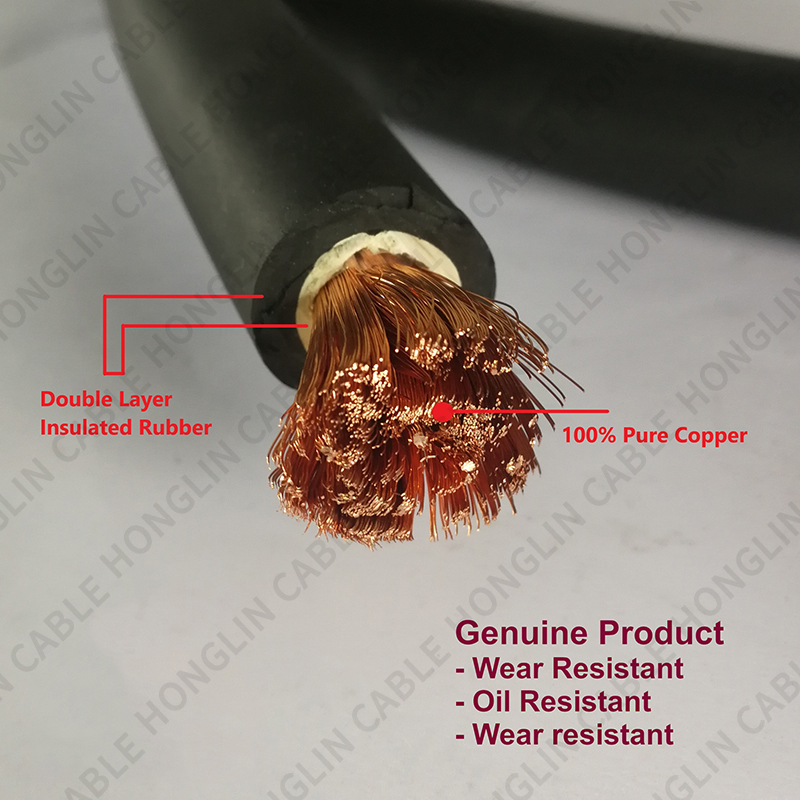

The conductor is the most important practical spec. A 100 welding cable built from many fine filaments (a rope-style conductor) flexes and resists fatigue far better than the same cross-section made from a few coarse strands. Fine-strand conductors provide:
dramatically increased bending cycles to failure on reels,
cleaner compression in lugs with fewer stray wires, and
lower risk of strand fracture at bends or crimps.
If your leads are reeled and handled daily, choose a 100-foot lead with a documented high strand count to reduce replacement frequency.
The jacket protects the conductor from the real world. For heavy use choose elastomeric jackets — EPDM, neoprene or Flex-A-Prene styles — because they remain flexible in the cold, resist oil and ozone, and tolerate abrasion. PVC jackets can be acceptable for protected indoor work, but they harden and crack faster under repeated flex or exposure to oils. For marine or corrosive environments, consider tinned conductors plus a chemically resistant jacket to protect terminations and extend life.
A 100-ft run is long enough that voltage drop matters at welding currents. Use the supplier’s DC resistance figure to compute end-voltage at your expected continuous and peak currents. If the computed end-voltage is marginal for your equipment, step up conductor size rather than accept poor arc performance. For battery and inverter feeds that experience high surge currents, account for transients and, if needed, use parallel runs or larger cross-sections to keep voltage within tolerances.
Most cable failures show up at terminations, not mid-span. For any 100 welding cable assembly:
use compression lugs sized for the conductor and stud; ensure the lug barrel captures all strands;
crimp with the manufacturer-specified die and verify mechanically where possible;
add strain-relief boots and heat-shrink to keep bending stress off the lug; and
commission critical joints with a thermal scan under load to detect high-resistance points early.
Professional terminations preserve the conductor’s low resistance and prevent hot spots that damage equipment or cause safety hazards.
How you treat a 100-foot lead determines its life. Adopt these practices:
use reels with a drum diameter that respects the cable’s minimum bend radius;
protect edges and pass-throughs with grommets to prevent chafing;
clean jackets before rewinding to remove grit that abrades the sheath; and
rotate reel usage so wear is spread evenly across your inventory.
Small changes in handling dramatically increase mean-time-between-failures for every 100-foot lead.

A 100 welding cable is ideal for:
portable welding leads for fabrication and field repair,
generator to equipment hookups on temporary sites,
battery interconnects and inverter feeds in mobile setups (with voltage-drop checks), and
portable motor/compressor feeds that need both reach and flexibility.
For each use, match jacket chemistry and strand geometry to the mechanical and environmental stress expected.
If you manage rental fleets, robotic cells, or work in corrosive environments, premium features can pay back quickly:
oxygen-free copper (OFC) gives marginally lower DC resistance where every millivolt matters,
tinned conductors reduce corrosion at terminations in salt-spray environments, and
ultra-flex constructions (very high strand counts and specialized jackets) last far longer under extreme flex cycles.
These options cost more per foot but reduce replacement frequency and downtime in heavy-use situations.
To ensure you get the right 100 welding cable, include the following in your RFQ:
conductor cross-section and exact strand breakdown,
jacket/insulation chemistry and temperature rating,
DC resistance at 20 °C and rated voltage,
minimum bend radius, outer diameter, and packaging (pre-cut vs. spool), and
required test certificates (mill test, hipot, insulation resistance) and sample acceptance policy.
A clear specification forces apples-to-apples quotes and prevents costly substitutions.
Pre-cut 100-ft leads often cost more per foot than buying by the spool because of handling and convenience. But the cheapest per-foot cable can be the most expensive over time if poor strand geometry and weak jackets cause frequent replacements. Evaluate installed cost: include termination labour, replacement frequency and downtime. A modest premium for a high-strand, EPDM-jacketed 100-foot lead usually delivers much lower cost per operating hour.
A short, repeatable maintenance program keeps leads reliable:
visual inspection of jackets and terminations before each job,
thermal scans of critical joints during commissioning and periodically,
immediate replacement of cables with exposed strands or deep cuts, and
tracking reel IDs and batch numbers for traceability and warranty handling.
A few minutes of routine inspection prevents the vast majority of field failures.
When you order a 100 welding cable, treat the purchase as a systems decision: specify conductor geometry for flex life, pick a jacket suited to your environment, require DC resistance and temperature ratings on the datasheet, request a sample reel for mission-critical orders, and insist on professional termination practices. Do this and your 100-foot leads will be dependable tools that save time, money and headaches in the field.
