Choosing the right 100 ft welding cable is about more than length and copper area — it’s a systems decision that directly affects jobsite productivity, safety and whole-life cost. A 100-foot lead is one of the most popular lengths because it balances reach with manageability: long enough to cover typical site layouts without frequent splicing, yet short enough to keep voltage drop reasonable for most welding and battery applications. Pick the wrong construction and you’ll replace leads often; pick well and you’ll reduce downtime and maintenance.
A properly built 100 ft welding cable gives crews the flexibility they need without making reels unwieldy. For portable welders, generator hookups or temporary site distribution, 100 feet allows a single lead to reach common work areas while keeping end-voltage within acceptable ranges — provided you check the conductor construction and DC resistance. Many buyers prefer a single 100-foot lead rather than stringing shorter sections or adding splices that can raise resistance and create failure points.
The phrase 100 ft welding cable only defines length. It does not tell you how the conductor is made, what jacket chemistry protects it, or how the cable will be terminated. Two 100-foot leads with the same AWG can behave very differently depending on:
strand geometry (high-strand vs. coarse strand),
conductor treatment (tinned vs. bare; OFC vs standard annealed),
jacket material (EPDM, neoprene, PVC), and
published DC resistance at 20 °C (used for voltage-drop calculations).
Always insist on datasheet numbers rather than trusting photos or marketing blurbs.

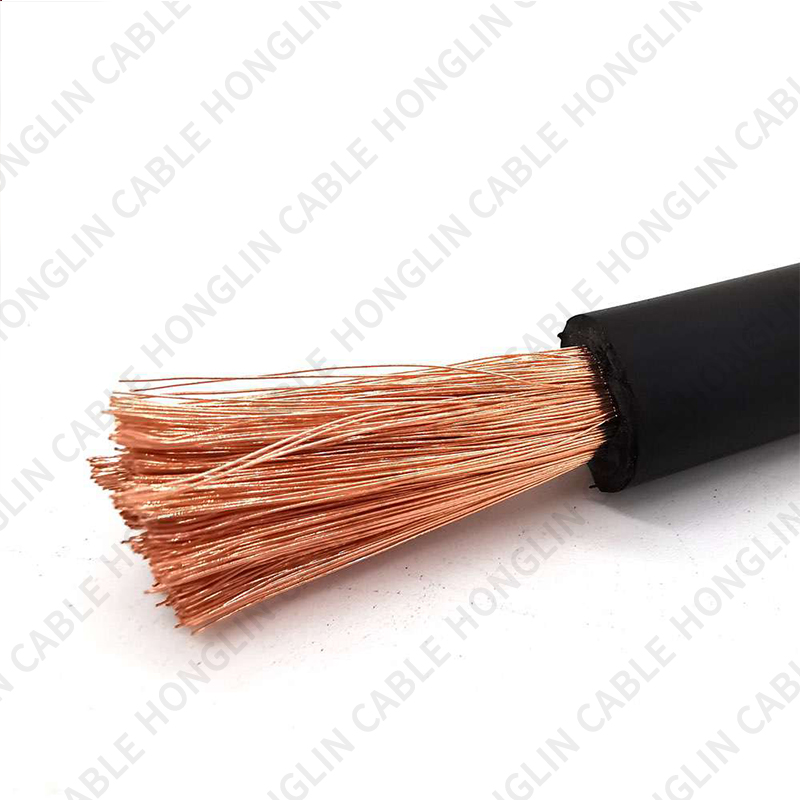

If you handle reels daily, strand geometry is the single most important spec. A 100 ft welding cable built from many fine filaments (a rope-style conductor) will flex and fatigue far better than the same cross-section made from a few coarse wires. Fine-strand conductors:
survive many more flex cycles on and off the reel,
crimp more uniformly in compression lugs (fewer stray strands), and
reduce the risk of conductor breakage near terminations.
For repeated reel/unreel operations — rental fleets, production rigs, or frequently moved service rigs — prefer documented strand counts and a “flex” or Class K designation.
The jacket is the cable’s armor. For heavy-use leads, elastomeric jackets such as EPDM or neoprene are the best choice: they remain flexible in cold weather, resist oil and ozone, and stand up to abrasion and sunlight. PVC jackets are cheaper and acceptable for light indoor use, but they harden sooner in cold or oily conditions and fail earlier on rough sites. A 100-foot lead with the right jacket will outlast a cheaper alternative many times over.
Before you buy a 100 ft welding cable, require these datasheet values:
conductor construction (strand count and filament size),
DC resistance at 20 °C (Ω/1000 ft or Ω/m) so you can compute voltage drop,
rated voltage and operating temperature range (many welding cables are 600 V class and rated to high temps), and
minimum bend radius and outside diameter for reel planning.
These numbers let you model real performance and avoid surprises when you put the lead under load.
A 100-foot run is long enough that voltage drop matters at welding currents. Use the supplier’s DC resistance figure and your expected continuous and peak currents to calculate end voltage. If the computed end voltage is marginal for your welder or inverter, step up the conductor size rather than accept poor arc control or stressed equipment. For battery and inverter feeds that see high surge currents, also check transient behaviour — some applications need a larger conductor or parallel runs to maintain performance.
Most cable failures appear at terminations, not mid-span. For a reliable 100 ft welding cable assembly:
install compression lugs sized for the conductor and the stud, ensuring the lug barrel captures all strands;
crimp with the manufacturer-specified die and tooling and verify crimp pull strength where possible;
provide strain relief boots and heat-shrink to keep bending stresses off the lug; and
commission critical joints with thermal imaging or load tests to find marginal connections before they fail.
A professional termination preserves the conductor’s low resistance and prevents hot joints that can damage equipment or cause safety hazards.
How you treat a 100-foot lead determines its lifetime. Follow these practical rules:
choose reels with a drum diameter large enough to respect the cable’s minimum bend radius;
protect pass-throughs with grommets to avoid chafing and cuts;
clean jackets before rewinding to remove grit that abrades the outer sheath; and
rotate reel usage so the same cable isn’t always the most worn.
Small behavior changes have outsized impact on mean time between failures.
A 100 ft welding cable is ideal for:
portable welding leads for field fabrication and repair,
generator-to-equipment hookups on temporary job sites,
battery interconnects and inverter feeds in mobile systems (with voltage-drop verification), and
portable motor and compressor feeds where reach and flexibility are both required.
In each application, match jacket chemistry and conductor flexibility to the specific stresses expected.
If you operate rental fleets, robotic welding cells, or corrosive environments, consider premium features:
oxygen-free copper (OFC) or specially annealed copper for slightly better conductivity,
tinned conductors to resist corrosion in marine or salt-spray conditions, and
ultra-flex constructions with very high strand counts for extreme flex cycles.
While these options cost more per foot, they reduce replacement frequency and downtime in high-use settings.
To get comparable quotes for a 100 ft welding cable, include these fields in your RFQ:
exact conductor construction (strand count and filament diameter),
jacket and insulation chemistry and temperature rating,
DC resistance @20 °C and rated voltage,
minimum bend radius, outer diameter and packaging (pre-cut vs. spool), and
required test certificates and a sample acceptance policy.
A clear specification prevents substitutions and ensures the delivered cable performs as intended.
Pre-cut 100-foot leads often cost more per foot than buying by spool, because of handling and convenience. But the cheapest per-foot cable can be the most expensive over time if poor strand geometry and weak jackets drive frequent replacements. Evaluate installed cost: factor in termination labour, replacement frequency, and downtime. A modest investment in a well-specified 100 ft welding cable usually delivers far lower cost per operating hour.
Adopt this short maintenance routine:
visually inspect jackets and terminations before each job,
thermal-scan critical terminations during commissioning and periodically,
replace any cable with exposed strands or deep cuts immediately, and
log reel IDs and batch numbers for traceability and warranty support.
Consistent, simple checks prevent most cable-related failures and keep crews productive.
When you order a 100 ft welding cable, treat the purchase as a systems decision: pick conductor geometry for flex life, choose a jacket suited to environmental exposures, require DC resistance and temperature ratings on the datasheet, and insist on quality terminations. Do that and each 100-foot lead becomes a dependable tool that saves time and money on the jobsite.
