If you’re shopping for a 1 welding cable, you’re balancing two things: electrical performance and real-world durability. In field work and shop environments, a cable must carry heavy currents with minimal voltage drop while surviving repeated reeling, abrasion and rough handling. A well-specified 1 welding cable gives you clean arcs, predictable battery/inverter performance and fewer emergency replacements — which translates directly into lower operating cost.
Saying “I need a 1 welding cable” tells suppliers the conductor size you want, but it does not tell you how that cable will behave on a jobsite. Two cables with the same gauge can be worlds apart if one uses a high-strand, rope-style conductor and an EPDM jacket while the other is coarse-stranded with PVC jacket. When you buy a 1 welding cable, the useful data are strand count, DCR (DC resistance at 20°C), jacket chemistry and the minimum bend radius — these are the numbers that predict performance.
When you evaluate a listing for a 1 welding cable, look for these clear, on-page items:
exact conductor construction (strand count and filament diameter),
DC resistance at 20°C (for voltage-drop math),
rated voltage and operating temperature range,
jacket type (EPDM, neoprene, PVC or specialty compound), and
minimum bend radius and outer diameter.
Pages that show these values save time and reduce the chance of a wrong purchase.

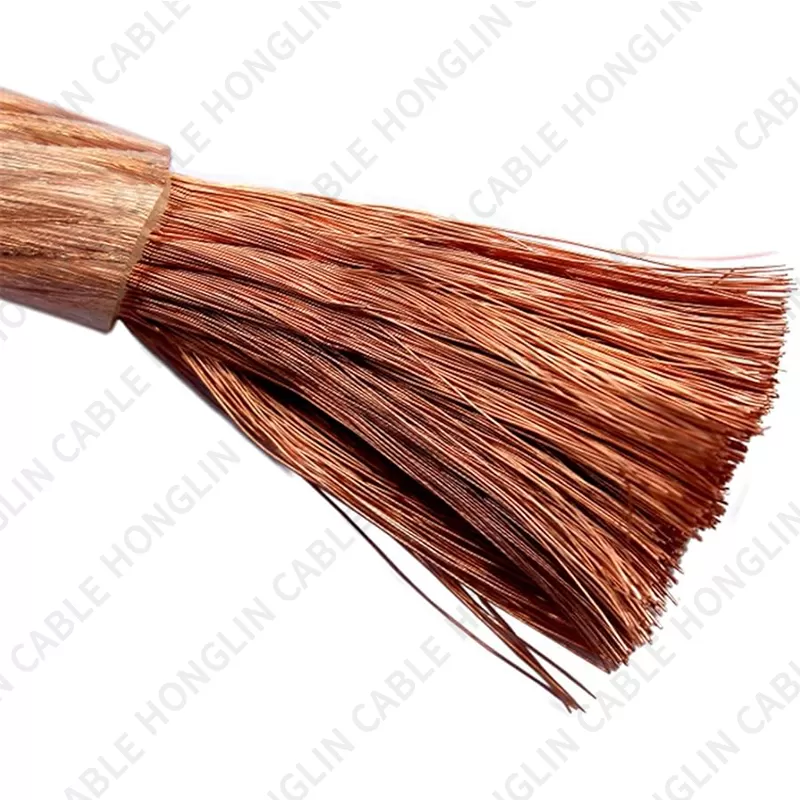

The heart of any 1 welding cable is its conductor. Fine-strand constructions — often hundreds or even thousands of thin filaments — produce a rope-like conductor that flexes without early internal failure. The benefits you feel on-site are concrete:
longer flex life when reels are handled repeatedly,
cleaner, lower-resistance crimps at the lugs, and
lower chance of fractured strands developing at terminations.
If your leads are reeled daily or used on rental fleets, insist on a high-strand 1 welding cable to reduce replacement frequency.
A 1 welding cable survives or fails depending largely on its jacket. For most demanding uses choose EPDM or neoprene — they resist oil, ozone, abrasion and keep flexibility even in the cold. PVC-jacketed cable may work for protected indoor uses, but it tends to harden and crack under heavy abrasion or low temperature. Match your jacket chemistry to whether the cable will see oil, direct sunlight, salt spray or frequent dragging.
Before you sign an order for a 1 welding cable, make sure the supplier provides:
conductor strand breakdown,
DC resistance (Ω/1000 ft or Ω/m) at 20°C,
rated voltage (welding cables typically 600 V),
operating temperature range, and
relevant standards or test certificates.
These numbers let you model voltage drop, thermal limits and ensure the cable meets your safety and performance needs.
A 1 welding cable is often suitable for short to medium welding leads, battery interconnects and portable generator feeds. Practical sizing rules:
Short handheld welding leads (up to a few tens of feet): 1 AWG often provides low voltage drop and good flexibility.
For longer runs or heavy continuous duty, calculate voltage drop using the supplier’s DCR and consider stepping up to 1/0 or 2/0 if the computed end voltage is marginal.
For battery cranking and inverter feeds, pay attention to surge currents and select a conductor that keeps voltage drop within acceptable limits.
Always verify with concrete numbers instead of relying on “rule of thumb.”
Most cable issues show up at terminations, not mid-span. For a dependable 1 welding cable assembly:
use the correct compression lugs sized for the conductor and stud,
crimp with the die the lug manufacturer specifies, and verify crimp quality,
include strain-relief boots and heat-shrink to keep bending forces off the lug, and
commission the assembly with a thermal scan at load to catch high-resistance joints early.
Good terminations preserve the conductor’s low resistance and prevent dangerous hot spots.
Daily handling determines a lead’s lifetime. To protect each 1 welding cable:
use reels sized so the cable never bends tighter than the minimum radius,
route through grommets at edges to prevent chafing,
clean jackets before rewinding to avoid grit-induced abrasion, and
rotate reel use so wear is evenly distributed across your inventory.
These simple practices significantly reduce replacements and downtime.
You’ll commonly use a 1 welding cable for:
portable welding leads on jobsites and maintenance work,
battery interconnects and inverter feeds in mobile or backup systems,
generator hookup leads for temporary distribution at construction sites, and
portable motor and compressor feeds where mobility matters.
For each use, pick the jacket and strand geometry that match mechanical stress and environment.
There are situations where premium choices are justified. Consider OFC (oxygen-free copper) for marginal gains in conductivity, tinned conductors for corrosive or marine environments, or ultra-flex constructions for robotic welding and rental fleets. These options cost more per foot but reduce lifecycle costs in high-abuse conditions.

To get comparable offers for 1 welding cable, include these fields in your RFQ:
AWG and exact strand breakdown.
Jacket/insulation chemistry and rated temperature range.
DC resistance at 20°C and rated voltage.
Minimum bend radius, outer diameter and packaging (reel length / cut tolerances).
Required test certificates and sample acceptance policy.
A precise RFQ prevents substitutions and speeds procurement of the correct cable.
A low sticker price per foot for a 1 welding cable can be a false economy. Coarse strand, cheap jacket cable often means more replacements, emergency labour, and lost production. Spending a modest premium on a properly specified cable usually reduces whole-life cost and improves reliability.
Adopt a short, repeatable maintenance routine:
visual inspections before each use,
thermal imaging of terminations during commissioning and after heavy use,
immediate replacement of cables with exposed strands or deep cuts, and
log reel IDs and batches for traceability and warranty handling.
A small inspection habit prevents most cable failures and safety incidents.
When you order a 1 welding cable, treat the purchase as a systems decision: choose conductor geometry for flex life, select a jacket matched to the environment, insist on datasheet numbers for DCR and thermal limits, and ensure termination quality in the field. Do that and your cable fleet will be reliable, safe and economical to operate.
