Nov. 25, 2025
If you need a reliable lead that balances reach and manageability, the 1 0 welding cable 50 ft is a worksite staple. Fifty feet is long enough to give welders room to move without constantly changing setup, yet short enough to keep voltage drop and handling weight reasonable. A properly specified 1 0 welding cable 50 ft lets you get to welds faster, spend less time wrestling leads, and keeps arcs crisp when it matters most.
There are situations where the 1 0 welding cable 50 ft is the logical choice. If you operate portable welders, service vehicles, or rental gear that must be set up quickly, 50 feet provides practical coverage for most small-to-medium work areas. For battery and inverter work where momentary loads spike, a 1 0 welding cable 50 ft often keeps end-voltage within equipment tolerances while remaining flexible enough for frequent handling.
The label 1 0 welding cable 50 ft tells you gauge and length, but it doesn’t tell you how the cable is built. Two 1/0, 50-foot leads can behave very differently. When you assess offers, always check the strand count (the fine-strand constructions flex far better than coarse strand), the insulation/jacket chemistry, and the DC resistance at 20 °C so you can calculate voltage drop for your load and run length.

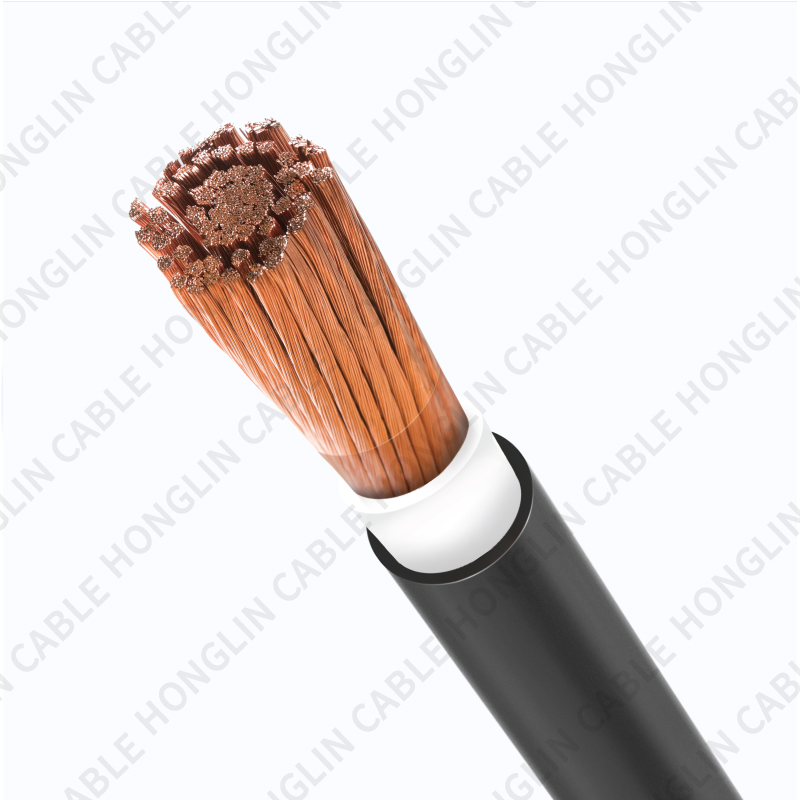

Durability in a 1 0 welding cable 50 ft starts with the conductor. The most durable leads use many fine copper filaments bundled into the 1/0 cross-section. Those filaments yield:
far greater flex fatigue life on reels and at terminations,
cleaner crimps and fewer stray wires at lugs, and
more consistent electrical contact under repeated handling.
If your leads get reeled dozens of times a week, specify a high-strand 1 0 welding cable 50 ft to reduce downtime and replacements.
A robust 1 0 welding cable 50 ft needs a jacket that can handle the jobsite:
EPDM and neoprene are common choices because they resist oil, ozone, abrasion and stay supple in the cold.
PVC may be cheaper but hardens faster and fails sooner in oily or outdoor conditions.
For marine or corrosive environments, consider tinned conductors plus a chemically resistant jacket.
Selecting the right jacket chemistry keeps your 1 0 welding cable 50 ft functional through seasons and rough handling.
When you order a 1 0 welding cable 50 ft, insist on datasheet values:
exact conductor construction and strand count,
DC resistance at 20 °C (used for voltage-drop math),
rated voltage and operating temperature range, and
minimum bend radius and outer diameter.
These numbers let you model performance and avoid surprises on the first job.
A 50-foot run is subject to voltage drop, especially under welding peaks. Use the supplier’s DC resistance figure to compute expected end-voltage for your equipment’s typical current. If you find voltage is marginal under expected welding current, either shorten the lead, bring the power source closer, or consider stepping up gauge. In many common welding setups, a 1 0 welding cable 50 ft hits the sweet spot — but always verify with the numbers.
Most cable failures show up at the terminations. For any 1 0 welding cable 50 ft assembly:
use compression lugs rated for 1/0 and sized to the stud;
crimp with the correct die and verify mechanically where possible;
provide strain relief and insulated boots to reduce bending at the lug;
thermally scan critical joints during commissioning to find high resistance early.
A quality termination ensures the conductor’s conductivity is carried through to the connection — and keeps the 1 0 welding cable 50 ft performing safely under load.
Because a 1 0 welding cable 50 ft is handled frequently, small habits matter:
use reels large enough to respect minimum bend radius,
protect pass-through points with grommets or guards,
clean and dry cables before rewinding to avoid sand/grit abrasion,
rotate reels so wear is spread across the fleet.
These low-effort routines pay off in fewer mid-job failures and lower replacement costs.
The 1 0 welding cable 50 ft is right at home in:
portable welding leads for field repairs, fabrication, and maintenance,
generator-to-equipment hookups at construction sites and events,
battery interconnects and inverter feeds where short-to-moderate runs are needed, and
portable distribution for motors and compressors that must be moved frequently.
Match jacket chemistry and strand geometry to the expected mechanical and environmental stress.
If you run high-duty operations or robotics, consider premium variants of the 1 0 welding cable 50 ft:
OFC (oxygen-free copper) offers slightly lower DC resistance and marginal voltage-drop improvements — useful where every volt matters.
Ultra-flex constructions (very high strand counts and specialized jacketing) deliver exceptional life on reels and in robotic arms.
Both options cost more but pay back quickly in heavy-use environments by reducing replacements and failures.
To get comparable quotes for a 1 0 welding cable 50 ft, specify:
AWG and exact strand breakdown (strand count and diameter).
Jacket and insulation materials and rated temperature range.
DC resistance at 20 °C and rated voltage.
Minimum bend radius, OD, and reel packaging.
Required test certificates (hipot, mill test) and sample acceptance policy.
A clear RFQ avoids substitute products and makes procurement faster and safer.
A lower per-foot price on an inferior lead may look attractive, but poor materials and coarse strand construction cost more in replacements, emergency labour and downtime. A properly specified 1 0 welding cable 50 ft—fine strands and a durable jacket—delivers lower cost per operating hour, especially for fleets and rental operators.
Keep leads working with a short routine:
quick visual checks before each job,
thermal scans of high-current joints at commissioning,
immediate replacement of cables with exposed strands or deep cuts, and
record reel batch numbers for traceability.
These tiny investments in inspection save big in reliability.
Treat the 1 0 welding cable 50 ft as a system component: choose conductor geometry for flex life, select a jacket suited to the environment, insist on datasheet numbers for resistance and temperature, require proper terminations, and run a brief inspection routine. Do these things and your 50-foot leads will be dependable assets rather than recurring problems.
