Nov. 25, 2025
The 1 0 welding cable 250 ft is a common specification chosen by contractors, rental companies and maintenance teams because it provides reach without sacrificing performance. A well-made 1 0 welding cable 250 ft keeps voltage drop low across practical jobsite distances and still reels compactly for storage and transport. For on-site welding and portable power distribution, the 250-foot length is often the right balance between mobility and electrical performance.
Choosing a 1 0 welding cable 250 ft is not only about conductor area: it’s about how that area is constructed and protected. A 1/0 conductor gives you a substantial cross-sectional area for carrying current, but strand geometry and jacket chemistry determine how the cable behaves when moved, reeled and terminated. A 1 0 welding cable 250 ft with many fine strands and an EPDM or neoprene jacket will flex and last far longer than a coarse-strand alternative of the same gauge.

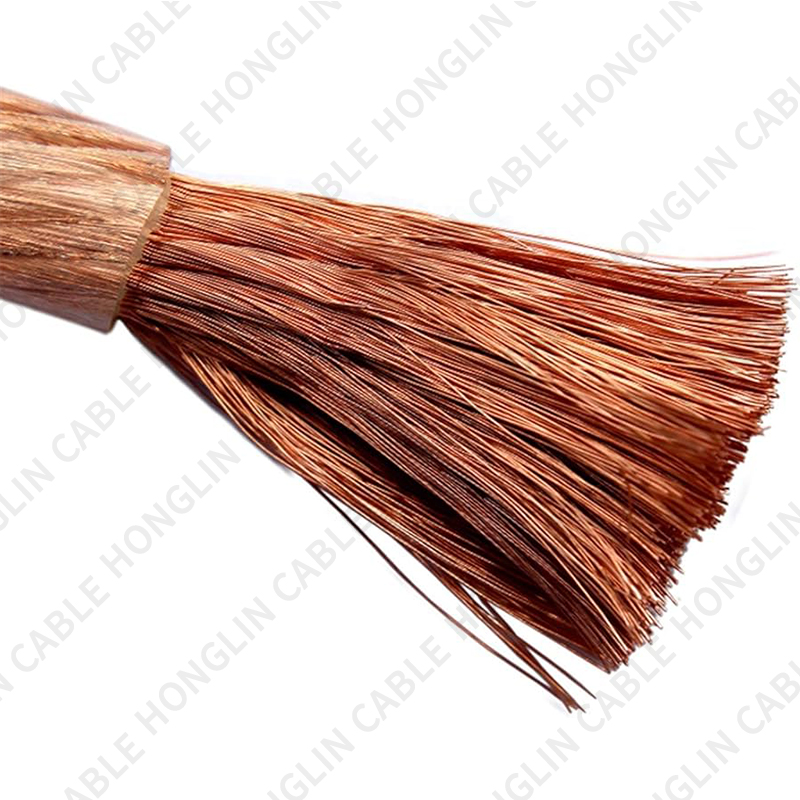

The real-world difference between two 1/0 cables often comes down to strand count. The best 1 0 welding cable 250 ft products use hundreds or thousands of small filaments to build the conductor; this construction increases flex life and gives crimp lugs a more uniform surface to compress. On a busy jobsite where leads unspool and spool back dozens of times per week, those fine strands are what prevent early failures at terminations and reduce the number of emergency replacements.
Not all jackets are created equal. For a durable 1 0 welding cable 250 ft, choose EPDM or neoprene jackets when you anticipate oil, abrasion, sun exposure, or cold temperatures. These elastomers remain flexible over a wider temperature range and resist chemical attack better than basic PVC. If you are working in corrosive or marine environments, consider tinned conductors with an appropriate jacket to minimize corrosion at connections over time.
When you compare offers for a 1 0 welding cable 250 ft, make sure the supplier provides the following numbers:
Conductor construction and exact strand breakdown (so you know the flex class).
DC resistance at 20 °C (for accurate voltage-drop computations).
Rated voltage (commonly 600 V for welding leads) and operating temperature range.
Minimum bend radius and outside diameter for reel planning.
Any relevant standards and test certificates (SAE J1127, ASTM references, mill tests).
These figures convert marketing language into engineering decisions and are the basis for safe, predictable operations.
A 1 0 welding cable 250 ft is a sensible choice in many scenarios, but it’s important to confirm suitability for your specific loads:
For typical welding leads used intermittently, a 1/0 conductor over 250 ft may still be acceptable if you model and confirm voltage drop at the expected welding current.
For battery-to-inverter runs or continuous high-current feeders, 250 ft is approaching the length where voltage drop becomes significant; conduct the calculation and consider stepping up to 2/0 if necessary.
For generator hookup and temporary distribution, 250 ft gives you reach but requires attention to termination quality and the loads you’ll expect at end devices.
Always use the supplier’s DC resistance to compute the real-life end voltage under load rather than relying on rule-of-thumb.
No matter how good the 1 0 welding cable 250 ft is, poor terminations will ruin performance. To maximize life and safety:
Use compression lugs sized for 1/0 and the intended stud or bolt. Ensure the lug barrel fully captures all strands.
Crimp with the correct die and tooling; a substandard crimp increases joint resistance and heat.
Fit strain reliefs and insulated boots so bending forces do not concentrate at the lug.
Commission with thermal imaging or load tests to find marginal joints before they fail.
Quality termination work ensures that the cable’s low resistance is carried through to the connection and that the assembly remains safe under high currents.
Operational practices have a big impact on the life of a 1 0 welding cable 250 ft:
Use reels with a drum diameter large enough to respect the cable’s minimum bend radius.
Protect entry and exit points with grommets to avoid chafing.
Clean the jacket before rewinding to prevent grit from embedding and abrading.
Rotate reel use across your fleet so no single cable takes all the wear.
Following these simple habits multiplies the useful life of your leads and reduces replacement costs and downtime.
If your application is high-intensity or precision-sensitive, consider premium variants. An OFC (oxygen-free copper) 1 0 welding cable 250 ft offers slightly lower DC resistance and can improve end-voltage marginally in high-current, short-lead situations. Ultra-flex or ultra-fine strand designs sacrifice little conductivity and provide superior flex life; they are a fit for robotic welding cells or rental fleets where cables are abused daily.
The 1 0 welding cable 250 ft finds use in:
Portable welding leads for field repairs and fabrication.
Generator to equipment hookups on construction or event sites.
Battery interconnects and temporary inverter feeds (with careful voltage-drop review).
Portable distribution for motors and compressors where mobility and reach are needed.
In each case, pair the cable with the right jacket, termination method and inspection regimen.
To get comparable offers, include these fields in your RFQ for 1 0 welding cable 250 ft:
AWG and conductor breakdown (strand count and strand diameter).
Jacket and insulation materials with rated temperature ranges.
DC resistance at 20 °C and rated voltage.
Minimum bend radius, outer diameter and reel length/packaging.
Required certificates (hipot, insulation resistance, mill test) and batch traceability.
Sample reel acceptance for mission-critical purchases.
A clear RFQ prevents substitutions and speeds procurement.
A low per-foot price on a 1 0 welding cable 250 ft can be attractive, but consider whole-life costs: frequent replacements, emergency labour and downtime add up. Investing a small premium for a properly specified, high-strand-and-EPDM cable often results in lower cost per operating hour and less disruption — a clear advantage for rental yards and high-use operations.
Adopt these simple habits to keep 250 ft leads reliable:
Visual inspection of jackets and terminations before each job.
Thermal scanning of high-current joints at commissioning.
Immediate replacement of cables with exposed strands or deep cuts.
Logging reel serials and batch numbers for traceability and warranty support.
A little preventive discipline saves a lot of reactive repair work.
When you choose a 1 0 welding cable 250 ft, treat it as a system. Specify conductor geometry for flex life, select a jacket for the environment, demand datasheet numbers for resistance and thermal limits, and insist on proper terminations and a short inspection routine. Do that and your 250 ft leads will be dependable workhorses rather than recurring liabilities.
