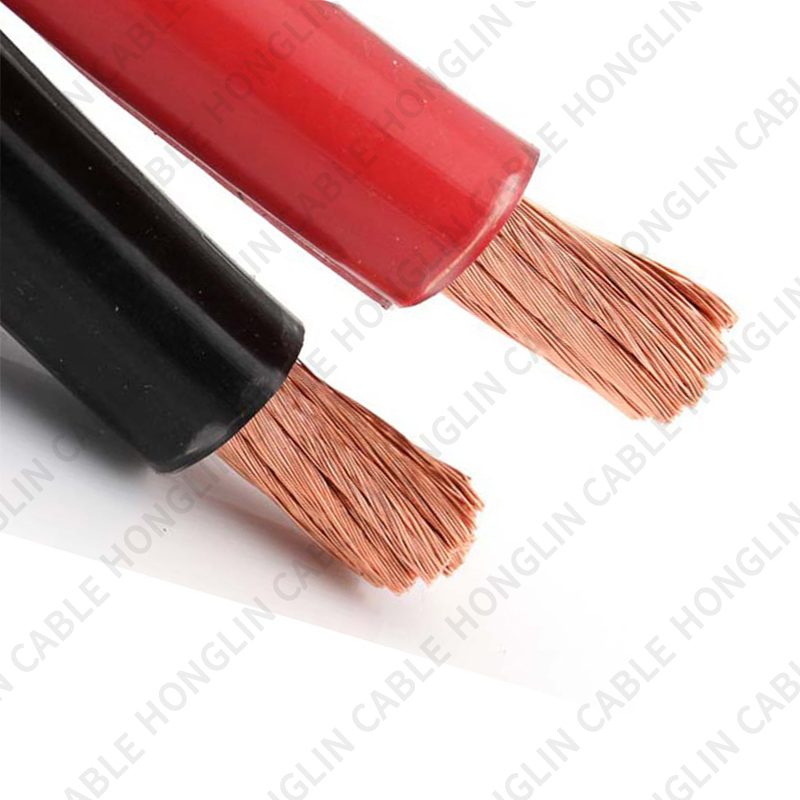

If you specify welding leads, battery interconnects or portable generator feeders, a correctly built 1 0 ofc welding cable delivers cleaner arcs, lower voltage drop and superior durability. Oxygen-free copper (OFC) is often chosen for its excellent conductivity and reduced impurities, while fine-strand constructions give the flexibility crews rely on when reels are deployed and stored day after day. Combining OFC with a rugged elastomeric jacket creates a cable that’s both electrically efficient and mechanically resilient.
Oxygen-free copper material is notable for lower oxygen levels and fewer inclusions. In practical terms this means slightly better conductivity and slightly lower DC resistance for the same cross-section compared with lower-grade copper. A 1 0 ofc welding cable used as a welding lead or battery feed will therefore have marginally improved voltage drop characteristics, which can matter in high-current, short-lead applications where every volt counts.
But material alone isn’t everything. The conductor’s strand geometry and the cable’s insulation and jacket chemistry determine how well that OFC conductor performs when handled, flexed and terminated in the field.
When shopping for a 1 0 ofc welding cable, the strand count is as important as the AWG label. Many premium flexible cables achieve 1/0 cross-section by using hundreds or even thousands of fine filaments (for example, constructions with around 1,000+ strands of 30 AWG-class filaments). The benefits of such fine-strand conductors are obvious on the job:
Significantly improved flex fatigue resistance, so reels and leads survive repeated unspooling without internal breaks.
Cleaner, more reliable terminations, because the filaments compress evenly in crimp lugs.
Lower mechanical stress at bend points, reducing the risk of conductor fractures near lugs.
In short: when a spec sheet for a 1 0 ofc welding cable shows high strand counts, you’re looking at a cable designed to endure real-world handling.
A cable’s jacket is its mechanical armor. For a 1 0 ofc welding cable intended for shop or outdoor use, prefer elastomeric jackets such as EPDM or neoprene. These compounds stay flexible at low temperatures, resist oil and ozone attack, and tolerate abrasion — the exact hazards welding cables face on a daily basis.
Double-layer or secondary jackets add mechanical protection where reels are dragged across rough surfaces. Where chemical exposure or marine environments are a factor, consider tinned OFC conductors plus specialized jackets to resist corrosion and salt spray. The right jacket extends real life far more than small differences in initial price.
When you request quotes, insist the supplier provides measurable values. For any 1 0 ofc welding cable, the following must be on the datasheet:
Exact conductor construction (1/0 AWG with strand breakdown).
DC resistance at 20 °C (Ω per 1,000 ft or Ω per metre).
Rated voltage (welding/battery cables are typically 600 V rated).
Operating temperature range (e.g., −50 °C to +105 °C for heavy-duty elastomeric jackets).
Minimum bend radius and outer diameter for reel planning.
Applicable standards (SAE J1127/J1128, ASTM references).
Having these numbers lets engineers calculate voltage drop and thermal limits before buying — essential for mission-critical installs.
A 1 0 ofc welding cable is commonly chosen for short welding leads and battery/inverter interconnects because it balances low resistance with manageable flexibility. Some practical sizing rules:
For handheld welding leads under 10–30 ft, 1/0 typically keeps voltage drop acceptably low while still allowing reasonable flexibility.
For battery interconnects and inverter feeds, 1/0 maintains end-voltage under high current surges.
For longer feeder runs, always compute voltage drop: long distances at elevated currents may require 2/0 or larger to keep end-voltage within equipment limits.
Use the supplier’s DC resistance figure to calculate expected voltage drop for your run length and duty profile.
Terminations are where most cable problems appear. A 1 0 ofc welding cable needs terminations that match its fine-strand heart:
Choose lugs rated for 1/0 and sized for the stud or bolt you’ll use. Compression lugs with full-barrel capture are standard.
Crimp properly with the correct die set; a poor crimp increases joint resistance and heating.
Employ strain relief and insulated boots to keep bending stresses away from the lug.
Inspect and test with thermography and load tests to find marginal joints before they fail.
Well-executed terminations keep the advantages of OFC and fine strands from being lost at the connection.
A few operational habits preserve expensive cable assets:
Use reels with adequate drum diameters to respect minimum bend radii.
Avoid sharp edges; protect entry points with grommets or guides.
Clean cable before rewinding to avoid embedding grit in the jacket.
Rotate reel usage to prevent over-use of individual lengths.
When combined with a high-strand 1 0 ofc welding cable, these simple practices extend service life dramatically.
This cable type performs especially well in:
Welding leads for portable welders and field fabrication.
Battery interconnects for engine starts, inverters and energy storage systems.
Generator hookup leads for portable power distribution at construction or events.
Portable motor and compressor feeds subject to frequent movement.
In each application the key is selecting a jacket and strand geometry tuned to mechanical stress and environment.
To compare offers for a 1 0 ofc welding cable, require suppliers to provide:
AWG size and precise strand breakdown.
Jacket and insulation material with temperature rating.
DC resistance at 20 °C and rated voltage.
Minimum bend radius, outer diameter and packaging lengths.
Test certificates and batch traceability.
Sample reel availability for acceptance testing.
A tight RFQ eliminates substitutions and speeds procurement.
The cheapest per-metre cable may cost you more over time. Poorly specified cables fail sooner, require emergency replacements, and increase labour and downtime costs. Investing in a proper 1 0 ofc welding cable—with OFC material, fine-strand conductor and a job-suitable jacket—reduces whole-life cost and improves operational reliability.
Inspect jackets and terminations before each job.
Perform thermal imaging on high-current connections at commissioning.
Replace any cable with exposed strands or deep cuts.
Keep a log of reel IDs and batch numbers for traceability.
A short routine prevents most field failures.
When you buy leads or battery cables, specify 1 0 ofc welding cable only after verifying conductor construction, DC resistance, jacket chemistry and minimum bend radius. Insist on sample reels for critical orders, require mill/test certificates with delivery, and make sure termination work is done with the right lug and crimping tooling. Follow good handling and inspection practices in the field and your cable assets will reward you with years of reliable service.
