When you need a cable that will be flexed, reeled and handled on a daily basis while carrying high currents, the right choice is more than a gauge number. The 1 0 flexible welding cable is built specifically for that duty: ample copper area for low resistance, many fine strands for exceptional flex life, and a rugged elastomeric jacket to resist oil, abrasion and weather. For shop managers, rental operators and field technicians, choosing the correct 1 0 flexible welding cable reduces downtime, improves welding performance and lowers lifecycle cost.
Saying “1 0 flexible welding cable” tells a buyer three important things at once: the conductor size (1/0 AWG), the intention for flexible duty, and the target application (welding or battery/inverter connections). But the label alone doesn’t guarantee performance — the construction details do. A high-strand 1/0 cable with EPDM or neoprene jacketing will flex and reel far longer than a coarse-strand cable of the same AWG. That’s why practical procurement looks for the strand breakdown and insulation chemistry, not just the gauge.

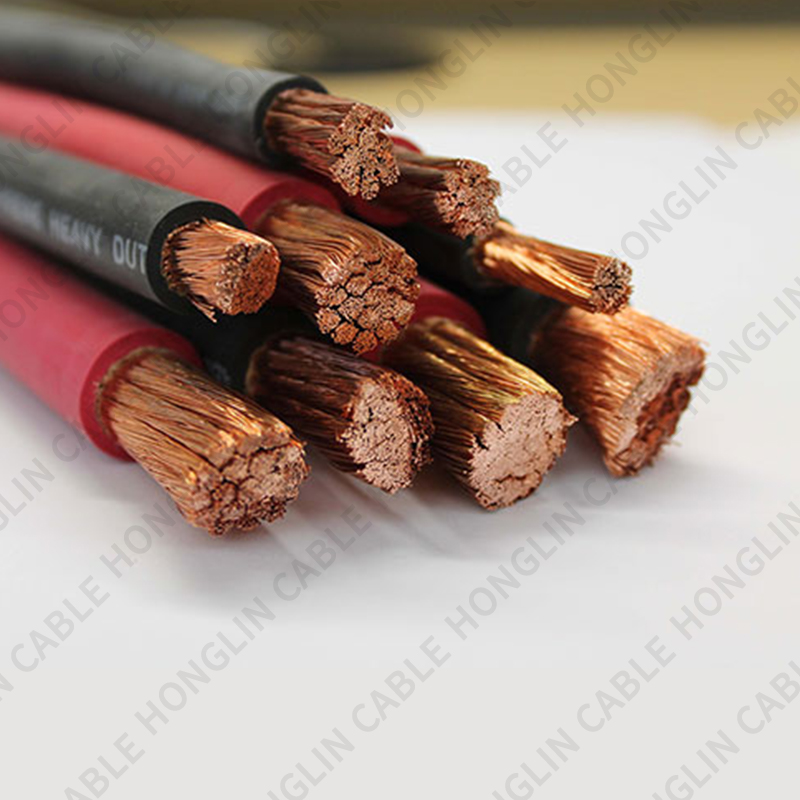

The conductor is the heart of any 1 0 flexible welding cable. Manufacturers achieve flexibility by using many thin copper filaments rather than a few thick ones. The result:
High strand counts dramatically increase bending cycles to failure.
Fine filaments reduce the chance of strand fracture at terminations and where the cable bends frequently.
Tinned vs. bare copper is a material choice—tinned helps in corrosive or marine settings and can ease soldering, but bare oxygen-free copper often offers slightly better conductivity for a given diameter.
When evaluating a quote, insist on the strand count (for example 1,026/30 or 1,196/30 constructions) as a practical indicator of flex life.
A top performing 1 0 flexible welding cable pairs its conductor with an insulation and outer jacket chosen for the expected exposures:
EPDM (and certain proprietary elastomers) stays flexible at low temperatures, resists oil and ozone, and handles abrasion — a common and reliable choice for outdoor and shop use.
Neoprene (PCP) or TPE blends are alternatives that balance abrasion resistance and cost.
PVC is acceptable for light, indoor use but tends to harden and crack when abused outdoors or under constant flex.
Match the jacket chemistry with your site reality — abrasion, oil, sunlight and cold all change expected service life.
When you request a sample or quote for a 1 0 flexible welding cable, verify these values on the datasheet:
Rated voltage (welding and battery cables are commonly 600 V rated).
DC resistance at 20°C (used for accurate voltage-drop calculations).
Operating/short-term temperature range (many robust cables list −50°C to +105°C or similar).
Minimum bend radius and outer diameter for reel and conduit planning.
Strand count and strand diameter for flex-life estimation.
These numbers let you model performance rather than guess from the gauge label.
A 1 0 flexible welding cable is often ideal for short to medium length welding leads and battery interconnects:
For handheld welding leads under 10–30 ft, 1/0 typically keeps voltage drop low and arc performance consistent.
For battery/inverter feeds and starter leads, this gauge balances flexibility and low resistance.
For longer generator feeders, run a voltage-drop calculation: long runs may need 2/0 or larger to maintain acceptable end voltage under load.
Always calculate both continuous ampacity and expected peak or surge currents (e.g., welding arcs or motor starts) to validate the chosen gauge.
Most cable failures show up at the junction, not mid-span. For a reliable 1 0 flexible welding cable installation:
Use proper compression lugs rated for the AWG and current. Ensure the lug captures all strands and matches the stud/bolt.
Crimp with the correct die and, where used, apply solder or brazing only following approved methods (heat can damage jackets if done poorly).
Fit strain relief and insulated boots to prevent bending stress at the lug.
Commission with a thermal scan under load to identify any high-resistance joints.
Proper terminations keep joint resistance low and preserve the cable’s electrical and mechanical performance.
Field teams that handle reels daily can dramatically extend cable life with a few practices:
Use reels with an adequate drum diameter so the cable never exceeds its minimum bend radius.
Protect edges and entry points with grommets or soft guards to prevent chafing.
Clean cable before rewinding to remove grit that abrades the jacket.
Rotate reel stock to avoid over-using a single cable.
Combined with a high-strand 1 0 flexible welding cable, these habits lower replacement frequency and save labour.
The 1 0 flexible welding cable fits many roles:
Portable welding leads for on-site fabrication and maintenance.
Battery interconnects and inverter feeds in mobile or renewable systems.
Generator hookup leads for temporary power distribution on construction and events.
Portable motor or compressor feeds where reeling and flex are routine.
For each of these, pick jacket chemistry and strand construction to match expected abuse.
To avoid ambiguity and get comparable quotes, include the following in your RFQ for a 1 0 flexible welding cable:
AWG designation and exact strand breakdown (e.g., 1,026/30).
Insulation and jacket materials plus rated temperature range.
DC resistance at 20°C and rated voltage.
Minimum bend radius and outer diameter.
Packaging and length options (per foot/metre, spool sizes).
Required test certificates (hipot, insulation resistance) and batch traceability.
Sample reel acceptance policy for mission-critical orders.
A tight RFQ gets you apples-to-apples comparisons and reduces substitution risk.
A cheap per-foot cable may look attractive, but poor selection increases lifecycle costs in three ways: more frequent replacements, higher emergency labour, and greater downtime. A modest premium for a correctly specified 1 0 flexible welding cable typically pays back rapidly in reduced maintenance and fewer job interruptions — especially in rental fleets and heavy-use shops.
Implement a short routine:
Inspect jackets and terminations pre-job.
Thermally scan terminations after commissioning.
Replace any cable with deep cuts or exposed strands—do not rely on risky field splices.
Log reel IDs and batch numbers to trace manufacturing issues.
A few minutes of discipline per job dramatically increases mean time between failures.
Prefer cables with published strand counts and datasheet DCR values.
Match jacket chemistry (EPDM or neoprene) to site exposures.
For marine or corrosive sites, consider tinned conductors.
Ask for sample reels for acceptance testing if the run is critical.
Negotiate volume pricing and lead times for fleet purchases.
These simple tactics will get you the right 1 0 flexible welding cable for your operation.
For reliable, repeatable field performance, treat the 1 0 flexible welding cable as a systems choice: pick the conductor geometry for flex life, choose a jacket suitable for the environment, require datasheet numbers and sample acceptance, and install with correct lugs and strain relief. Do those things and your cable will be an asset — not a recurring headache.
