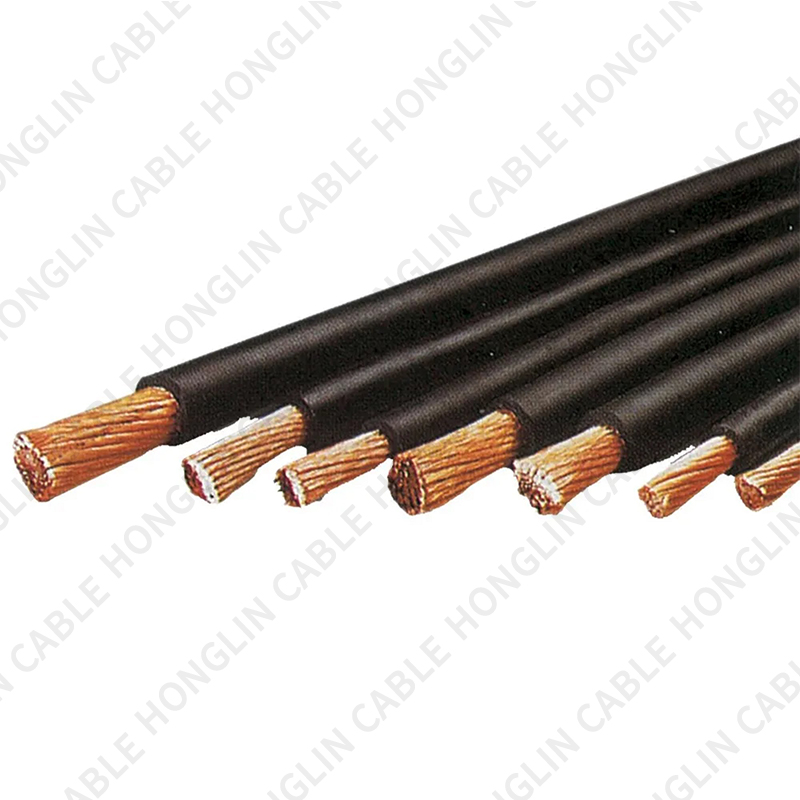

When durable, low-resistance leads matter — for welding, battery interconnects or portable generator feeds — the right conductor choice makes the difference between a smooth job and repeated callouts. The 00 gauge welding cable family (also referenced as 2/0 AWG or “two-ought”) gives you a large copper cross-section with flexible, high-strand construction and rugged jacketing so reels and leads survive frequent handling and high currents.
Engineers check DC resistance, temp ratings and strand geometry; site crews look at reel-feel and how a cable reels out. A purchasing decision that balances both perspectives picks a 00 gauge welding cable that delivers arc performance, low voltage drop and long life.
“00” (two-ought or 2/0) denotes conductor cross-section and current capacity, but it doesn’t tell the full story. Two key attributes change the real-world behaviour:
How the conductor is constructed — many fine strands (for example, constructions advertised as class K or with strand counts running in the hundreds) make the cable flexible and resistant to fatigue. awcwire.com
What jacket and insulation are used — EPDM, neoprene or similar elastomeric jackets preserve flexibility, resist oil/abrasion and last longer on job sites. powerwerx.com
When comparing offers for a 00 gauge welding cable, require both the AWG and the strand construction on the vendor datasheet; that prevents surprises at the jobsite.
A properly specified 00 gauge welding cable combines three engineered layers:
Conductor: finely stranded annealed copper that yields a low DC resistance per unit length and excellent flex life. Many manufacturers publish exact strand counts (use that number to compare flexibility). awcwire.com
Insulation: high-performance elastomer (often EPR/EPR-like or special rubber compounds) providing dielectric strength and thermal margin.
Outer jacket: EPDM, neoprene or carolprene that resists abrasion, oil and UV — critical where cables are dragged, reeled and stored outdoors. powerwerx.com+1
Those construction choices explain why a correctly chosen 00 gauge welding cable lasts far longer in real use than an underspecified alternative.
Good product pages show the numbers you rely on. For any 00 gauge welding cable in your RFQ demand:
Rated voltage (many welding cables are rated to 600 V). prioritywire.com
DC resistance at 20 °C (used for voltage-drop calculations). prioritywire.com
Operating temperature range (typical heavy-duty welding cables are rated -50 °C to +105 °C). prioritywire.com
Strand count and strand diameter (the practical indicator of flex life). awcwire.com
Insist on these values in the quote — they convert a marketing claim into verifiable performance.
A 00 gauge welding cable is often used where robust current capacity and moderate flexibility are needed:
Short welding leads: Two-ought is a common and reliable size under 10–30 ft for most ARC welding machines — it keeps voltage drop low and arc control tight. powerassemblies.com
Battery and inverter interconnects: 00 AWG reduces losses in high-current inverter or battery bank connections.
Longer generator feeders: model voltage drop — long runs may justify stepping to 2/0 (00) or larger depending on the current and acceptable voltage loss. powerassemblies.com
Use the supplier’s DC resistance figure to compute voltage drop for your exact run length and duty cycle.
Field crews notice flex life long before engineers do on paper. A 00 gauge welding cable built with many thin strands resists fracture at terminations and flex points; that dramatically reduces replacements and emergency downtime. Practical handling rules extend life further:
Use reels with proper drum diameter to respect minimum bend radius.
Avoid dragging across sharp edges; protect routes with grommets.
Clean and inspect before rewinding to avoid embedding grit into jackets.
These practices, combined with high-strand 00 AWG cables, reduce fleet replacement costs considerably. awcwire.com
Most real-world failures show up at the termination. For a reliable 00 gauge welding cable installation:
Use compression lugs sized for two-ought cable and compatible with the stud/bolt size.
Crimp or compress with the correct tooling and verify mechanical hold with a pull test.
Provide strain relief and heat-shrink boots to prevent bending at the lug.
Inspect under load with a thermographic camera during commissioning to catch high-resistance joints early.
Proper termination protects the conductor and delivers consistent, predictable performance.
Select the jacket to match exposure:
Shop and outdoor use: choose EPDM or neoprene for oil and abrasion resistance. powerwerx.com
Cold climates: confirm low-temperature flexibility so the jacket remains supple.
Marine or corrosive atmospheres: consider tinned conductors and jackets with salt-spray resilience.
A jacket mismatch is the top reason otherwise good cables fail prematurely.
When requesting quotes for a 00 gauge welding cable, include:
AWG size and conductor cross-section (clarify “00” = 2/0).
Strand count and strand diameter (or class K designation). awcwire.com
DC resistance at 20 °C and rated voltage. prioritywire.com
Jacket and insulation materials with temperature and abrasion claims. powerwerx.com
Required test certificates (hipot, insulation resistance) and batch traceability.
Packaging lengths (per foot / per reel) and acceptance test sample policy.
A precise RFQ produces apples-to-apples bids and avoids wrong-product deliveries.
The 00 gauge welding cable is commonly specified for:
Welding leads and electrode connections that see repeated handling. powerassemblies.com
Battery and inverter interconnects where high currents and low resistance matter.
Short-run portable power feeds and generator hookups at construction and events.
Mobile equipment feeds where flexibility and current capacity must co-exist.
Each application benefits from deliberately chosen jacket chemistry and strand geometry.
Choosing the cheapest per-foot cable can lead to higher lifecycle costs — more replacements, more labour and more downtime. Investing in a correctly specified 00 gauge welding cable with the right jacket and high-strand conductor typically lowers total cost of ownership for contractors, rental fleets and maintenance teams. Recent distributor and manufacturer listings illustrate the price spread between basic and premium constructions; match specification to duty rather than price alone. batterycablesusa.com+1
Visual inspection before each shift.
Clean and dry before rewinding.
Thermographic scan of terminations on commissioning.
Replace any cable with exposed strands or deep jacket cuts.
Log reel serials and batch numbers for warranty/tracing.
A short maintenance routine multiplies the useful life of each 00 gauge welding cable in your fleet.
When your work depends on portable high-current leads, treat the 00 gauge welding cable selection as a systems decision: pick conductor geometry for flex life, jacket chemistry for environment, and insist on datasheet numbers for resistance and temperature. Demand sample reels for mission-critical orders and require mill/test certificates on delivery. Do that and the cable will be a dependable asset rather than a recurring expense.
