If your job involves arc welding, battery banks, generator hookups or short high-current runs, the cable between the source and the work is not a trivial choice. The 0 welding cable family (commonly sized as 1/0 AWG) is built to carry significant current while remaining flexible enough for repeated reel-in/reel-out handling. A thoughtfully specified 0 welding cable keeps voltage drop low at the point of use, reduces heating at terminations and makes life easier for crews who handle leads every day.
When you compare options, focus on three practical attributes that determine real-world performance: conductor geometry, jacket chemistry and rated numbers on the datasheet. A top-performing 0 welding cable combines a high strand count conductor for flexibility, an EPDM or neoprene jacket for abrasion and oil resistance, and clear electrical ratings (DC resistance, voltage and temperature) so an engineer can verify performance before install. Pages that list these items are the same pages buyers consult when they select stock or place orders. Windy Nation Inc+1

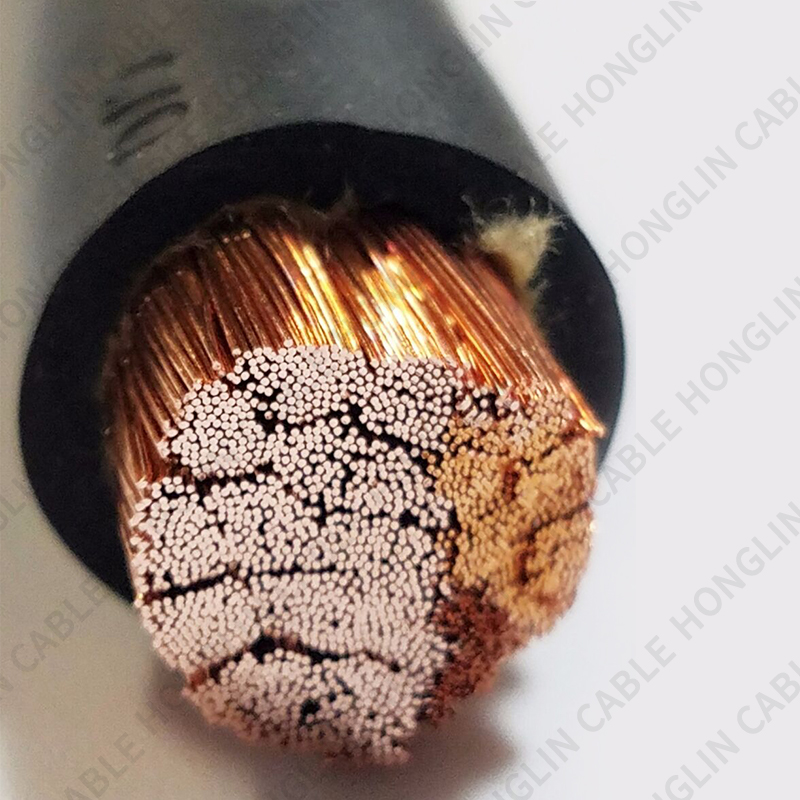

“0” tells you the cross-sectional capacity, but not how the conductor is built. Two 0 AWG cables may share conductor area yet behave very differently because of strand geometry:
Fine-stranded conductors use hundreds or thousands of small filaments. They flex thousands of cycles with less risk of broken wires at terminations.
Coarse-stranded conductors are cheaper to make but fracture sooner under repeated bends.
Many suppliers advertise the exact strand count (for example, 990×30 or 1026×30) because it is the clearest indicator of flex life.
If your crew reels and unreels leads daily, buying a high-strand 0 welding cable pays off in reduced downtime and fewer emergency replacements. IEWC+1
The outer jacket determines how the cable survives handling, weather and chemical exposure. Practical jacket choices for a robust 0 welding cable include:
EPDM (ethylene propylene diene monomer): excellent oil, water and abrasion resistance; stays pliable in cold weather. temcoindustrial.com
Neoprene / PCP: known for abrasion and weather resistance when the cable sees frequent ground contact and reel use.
PVC: acceptable for indoor or light-duty use but less resilient in oily, cold or abrasive environments.
Selecting the right jacket chemistry up front prevents rapid deterioration and extends cable life in real conditions.
When you specify a 0 welding cable, require numeric verification of:
Conductor cross-section and AWG designation (confirm “0” or 1/0 AWG).
DC resistance at 20 °C — required for voltage-drop calculations.
Rated voltage (commonly 600 V for welding/battery cable). NassauNationalCable
Operating temperature range and short-time thermal limits.
Strand count and strand diameter to judge flexibility.
These figures allow you to model performance and ensure the cable meets both electrical and mechanical needs before it arrives on site.
The 0 welding cable is chosen when you need low resistance on short runs and flexibility for handheld tasks. Here’s how to size sensibly:
For short welding leads (under 10–20 ft), 0 AWG typically delivers the arc performance welders expect.
For battery interconnects and inverter feeds, 0 AWG keeps voltage loss low during high current draws.
For longer runs (generator to distribution), calculate voltage drop; you may need to step up to 2/0 or 4/0 for acceptable end-voltage under load. Wire And Cable Your Way
Always run a quick voltage-drop check rather than rely on thumb rules; the datasheet DC resistance makes the math straightforward.
Most cable failures happen at the joint. To keep your 0 welding cable performing:
Use proper compression lugs rated for 0 AWG and for the expected current.
Crimp with the correct die and inspect for stray strands.
Add strain relief so bending doesn’t concentrate stress at the lug.
Thermally scan terminations after commissioning to catch any high-resistance spots before they grow into problems.
Good terminations and boots reduce hot joints and improve safety under load.
Because these cables are handled often, small habits make a big difference:
Use reels with large enough diameter to respect the cable’s minimum bend radius.
Avoid dragging cables over sharp edges; protect passages with grommets.
Clean and dry cables before rewinding to prevent embedded grit from abrading the jacket.
Rotate reels so wear is spread across the fleet.
Following these simple procedures preserves the flex life of your 0 welding cable and reduces ongoing replacement costs.
For outdoor or shop use, your cable will meet oil, dirt and abrasion. A well-selected 0 welding cable with an EPDM or neoprene jacket resists these stresses and maintains mechanical integrity. For marine applications or salt-spray exposure, consider tinned conductors and appropriate jacket compounds to reduce corrosion at terminations.
Keep safety central:
Inspect jackets and terminations before each job; replace any cable with cuts that expose conductors.
Use thermal imaging on high-current terminations during start-up and commissioning.
Store reels indoors where possible to reduce UV and ozone breakdown of jackets.
A short inspection routine prevents many of the common failures technicians encounter.
To get comparable bids and avoid surprises when you buy 0 welding cable, require suppliers to include:
AWG and conductor cross-section in mm².
Strand count and strand diameter.
Jacket and insulation material, temperature rating and abrasion/oil claims.
DC resistance at 20 °C and rated voltage.
Packaging (lengths, reel sizes) and sample availability for acceptance testing.
Mill test certificates and batch traceability for critical projects.
A detailed RFQ gets you apples-to-apples quotes and speeds procurement.
A low price per foot can look attractive, but poor selection leads to higher lifecycle costs from replacements, downtime and emergency labor. Investing in a well-specified 0 welding cable with suitable jacket and strand geometry reduces service calls and makes fleets more reliable. For contractors and rental operators this quickly translates into lower operating costs.
On heavy-use rental fleets, switching to high-strand 0 AWG cable with EPDM jackets reduced cable-related callouts by a significant margin. The improved flex life and tougher jackets meant cables lasted longer under repeated handling, and staff spent less time swapping leads mid-job. The initial material premium paid back in lower maintenance and faster job turnover.
When you need reliable portable power or welding leads, choose a 0 welding cable matched to the duty: high-strand conductor for flex life, EPDM or neoprene jackets for field durability, and explicit datasheet values for resistance and thermal limits. Insist on correct lugs and strain relief, follow reel handling rules, and run a simple inspection routine. Do that, and your cables will be dependable tools that help the job move faster and safer.
