Nov. 24, 2025

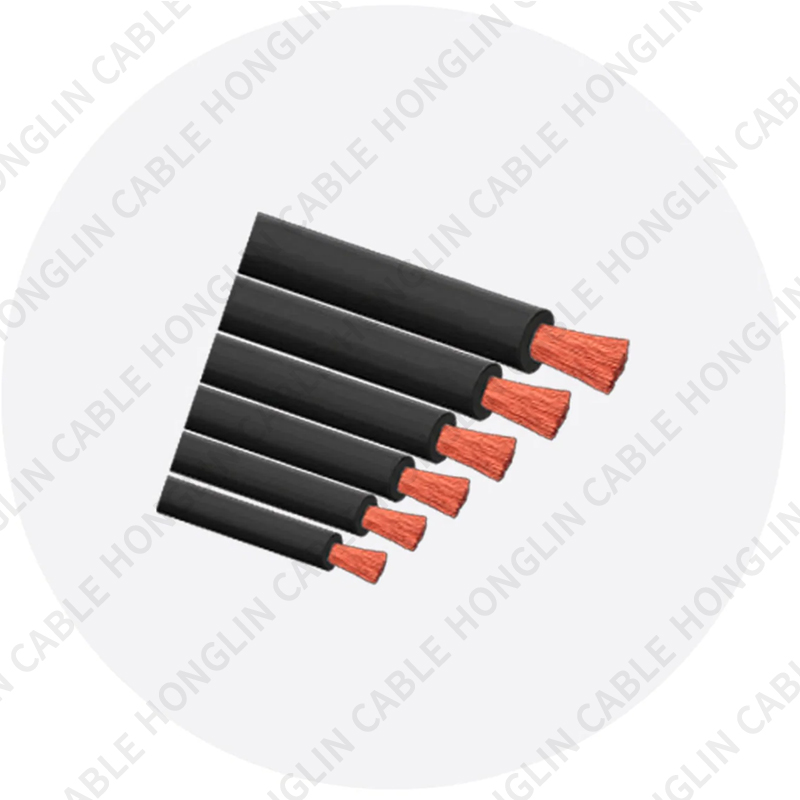

When you’re welding, rigging generators, or wiring battery banks, the cable is more than a copper bar — it’s the difference between steady arc starts and flaky performance, between safe operation and overheating joints. The 0 gauge welding cable category is specifically sized and constructed for high-current, short-run duty: big conductor area for low resistance, high strand counts for flexibility, and rugged jackets to survive industrial handling. Buying the correct 0 gauge welding cable means fewer field failures, safer terminations and lower lifetime cost.
“0 gauge” (also called 0 AWG or 1/0 in some regions) tells you conductor cross-sectional capacity, but not everything you must know. Two 0 gauge cables can behave very differently depending on:
how many strands make up the conductor (higher strand count = more flexible),
individual strand diameter (fine filaments like ~0.2 mm increase flex life), and
whether the conductor is tinned (improves corrosion resistance) or bare copper.
A good supplier datasheet will show DC resistance at 20°C and strand construction so you can predict voltage drop and mechanical life. For typical welding and battery cables, a 600 V rating and EPDM/neoprene jacketing are common spec items to check. prioritywire.com+1
A reliable 0 gauge welding cable is engineered in three layers:
Conductor: finely stranded annealed copper. Many premium 0 gauge cables use hundreds or even thousands of small-diameter strands for excellent flexibility and fatigue resistance. This reduces the risk of broken wires at terminations after repeated use. 亚马逊
Insulation: elastomeric materials — EPDM and neoprene are standard for heavy-duty use because they resist oils, ozone and abrasion while retaining flexibility over a wide temperature range.
Jacket: the outer jacket compounds are selected to survive pulling, dragging and exposure on work sites. For outdoor or marine exposure verify UV and salt-spray resistance. Windy Nation Inc
Put together, these layers define whether a 0 gauge welding cable will be disposable or a durable fleet asset.
When comparing offers, insist on the following minimum datasheet items:
Conductor designation (0 AWG / 1/0), strand count and strand diameter.
DC resistance (Ω per 1000 ft or Ω per metre at 20°C).
Rated voltage (typically 600 V for welding and battery cable applications) and operating temperature range. prioritywire.com
Recommended ampacity and voltage-drop guidance for common run lengths and duty cycles.
These values let you check both continuous loads and short-term welding or cranking peaks. Don’t buy on gauge alone — verify the numbers.
Welding leads and battery interconnects face two common sizing drivers: continuous current and short-term peak current. The 0 gauge welding cable is popular because:
Its cross-sectional area keeps DC resistance low, reducing voltage drop on short leads.
Fine-strand versions support reels and portable use without cracking.
For longer generator-to-panel runs or inverter connections, run a voltage-drop calculation and consider stepping up the conductor if the calculated end voltage is marginal under load.
Field teams who reel and un-reel cables daily will tell you strand count is one of the most practical specifications. A 0 gauge cable made from many thin strands (for example, several hundred filaments) survives repeated flexing far longer than a coarse-strand equivalent. That means fewer emergency cable changes, fewer hot joints and a lower total cost of ownership for rental yards and busy shops. Supplier pages and spec sheets commonly advertise strand counts for this reason. iewc.com
Almost every cable failure happens at the termination. For a safe, low-resistance connection on a 0 gauge welding cable:
Use compression lugs rated for 0 AWG and sized for the lug’s bolt or stud.
Crimp using the correct die and verify with pull tests if possible.
Use strain relief boots and flexible covers to stop bending stress at the joint.
Inspect joints thermographically during commissioning to detect high-resistance connections before they fail.
A properly made termination is the biggest longevity multiplier you can apply.
Match jacket chemistry to the environment:
Shop & outdoor general duty: EPDM or neoprene jackets for abrasion and oil resistance. Windy Nation Inc
Cold climates: check the low-temperature flexibility rating so the jacket does not become brittle.
Corrosive or marine settings: prefer tinned conductors and special compounds that tolerate salt spray.
Specifying the right jacket up front saves replacement costs and avoids downtime.
The 0 gauge welding cable is commonly used for:
Welding leads and high-current electrode cables.
Battery interconnects in heavy vehicles, energy storage and backup systems.
Generator hookup and portable distribution on construction sites.
Short-run inverter and charger interconnections where low resistance is required.
Selecting an application-specific jacket and strand geometry ensures the cable performs as expected.
To get comparable quotes, require suppliers to supply:
AWG size and exact conductor cross-section (and strand breakdown).
DC resistance at 20°C and temperature rating.
Jacket and insulation material and any relevant test reports.
Rated voltage and ampacity charts or guidance.
Lead time, packaging (reel length), and mill test certificates or traceability.
A precise RFQ is the fastest path to a cable that works the first time.
A cheap per-foot 0 gauge cable may appear attractive, but consider total cost:
Frequent replacements from poor jacket choice increase labour and downtime costs.
Poor strand geometry increases termination failures and safety risk.
Properly specified cables typically cost more up front but last greatly longer, reducing cost per operating hour.
For fleets and contractors the better investment is a thoughtfully specified 0 gauge welding cable rated for your duty cycle.
A short, routine maintenance checklist keeps reels working:
Visual pre-job inspection for cuts or pinches.
Torque check and thermal scan at joints after commissioning.
Replace cables with significant jacket damage rather than patching.
Track spool serials and batch numbers to spot manufacturing defects early.
Routine checks are cheap insurance against sudden job-stopping failures.
If your operation depends on portable high-current leads, specify a 0 gauge welding cable with fine-stranded conductor, an EPDM or neoprene jacket for jobsite durability, and documented electrical data in the RFQ. Insist on proper lugs, crimping tools, and a short inspection routine; your cable will then become an enabling tool rather than a recurring hassle.
