H07RN-F Cable
According to IEC and VDE Standard
Approved by ISO,CE, SGS
Place of Origin: Henan, China
In Stock
Number of Conductors: 1
HS Code: 8544492100
Packing: 100 Meters
H07RN-F 1x240mm² is a highly flexible rubber insulated single-core power cable designed for high current transmission in 450/750V voltage environments. The H07RN-F rubberized cable is highly flexible with an oil, abrasion and UV resistant PCP jacket, which guarantees long-lasting reliability in harsh scenarios such as mines, offshore platforms and heavy industry. H07RN-F 240mm cables are widely used for substation feeders, large generator power supply or renewable energy hub connections, meeting the requirements of dynamic wiring and moderate mechanical stress. It is CE and IEC certified and available in multi-core types (3/4/5 core) for complex power systems. In addition, common single-core cable sizes are: H07RN-F 1×50, H07RN-F 1×70 and H07RN-F 1×95.
The inner insulating EPR rubber insulation provides excellent resistance to ozone, UV rays and aging, and maintains insulation stability even after long-term exposure to outdoor environments;
The outer black PCP jacket offers excellent mechanical protection, tear resistance, oil resistance and flame retardancy (IEC 60332-1 tested) to meet industrial safety standards.

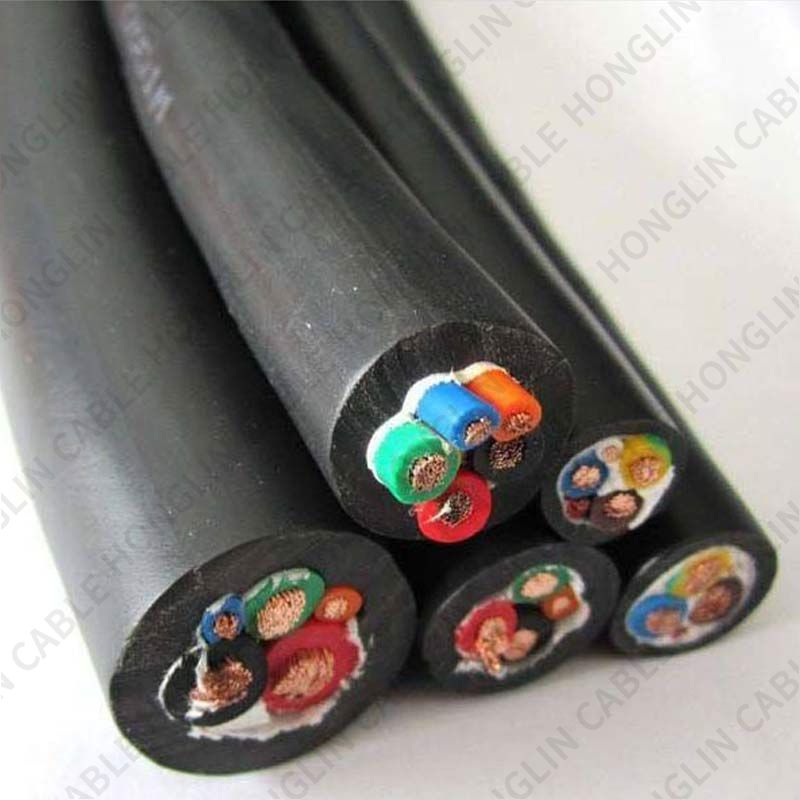

In addition to single-core models, the H07RN-F series is also available in multi-core configurations such as H07RN-F 3-core, H07RN-F 4-core, and H07RN-F 5-core to meet the needs of complex equipment with multi-loop control.
Resistant to frequent bending and dragging; Suitable for mobile equipment cabling and high mechanical stress scenarios.
Conductor: Plain Annealed Copper Class 5
Insulation: EPR Rubber
Sheath: PCP (Polychloroprene)
Sheath Color: Black
Temperature range: -30°C to +60°C
Test Voltage: 2500V
Nominal voltage: 450/750V
Max. Temperature During Short Circuit (≤5S): 200°C
Insulation Thickness (mm): 2.4
Jacket Thickness(mm): 3.5
Overall Diameter(mm): 29.4
Nominal Weight(kg/km): 2290
