Flexible Cable Rubber Cable
This is a single-core power cable for shore power supply to ships, with a rated voltage of 600/1000V, a rated current carrying capacity of 600A, and a conductor cross-section of 150mm².

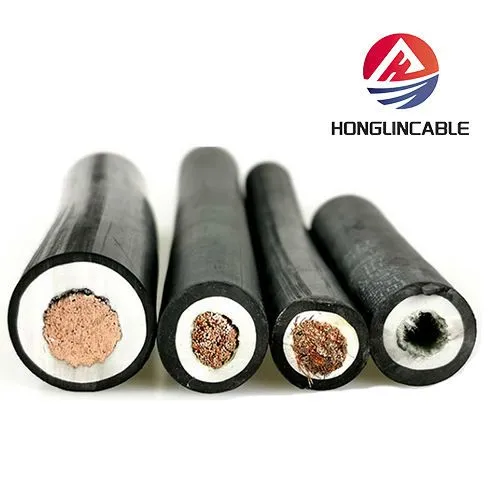

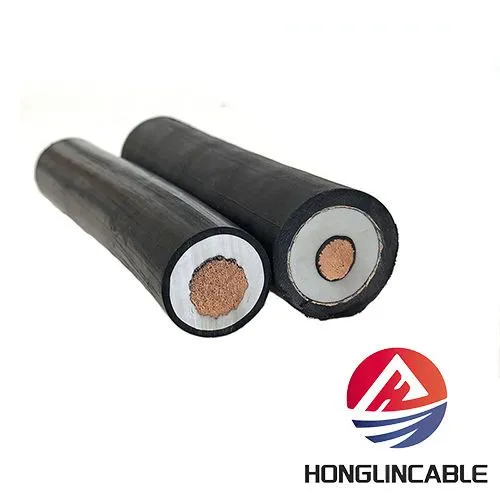

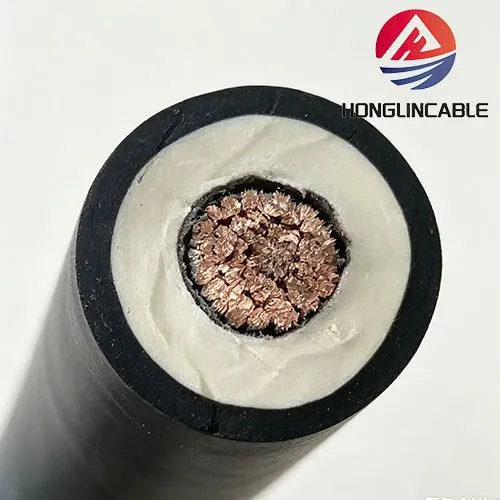

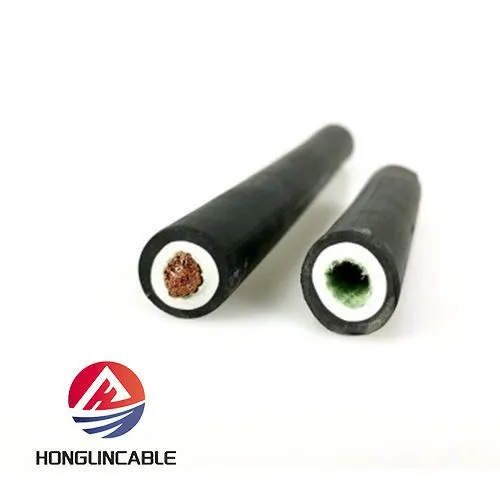

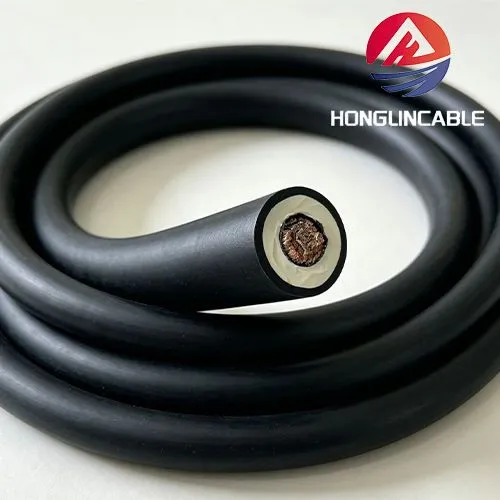

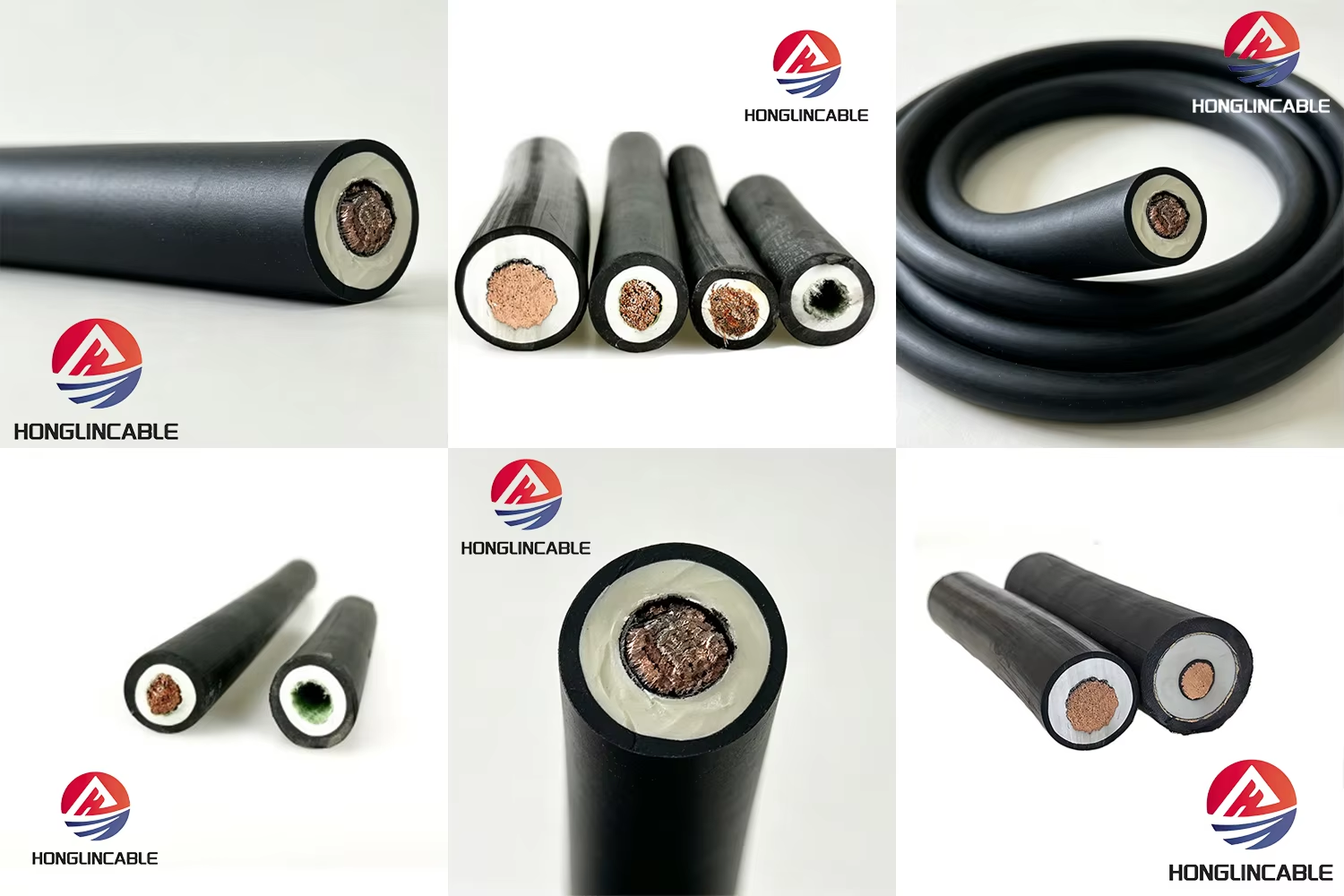

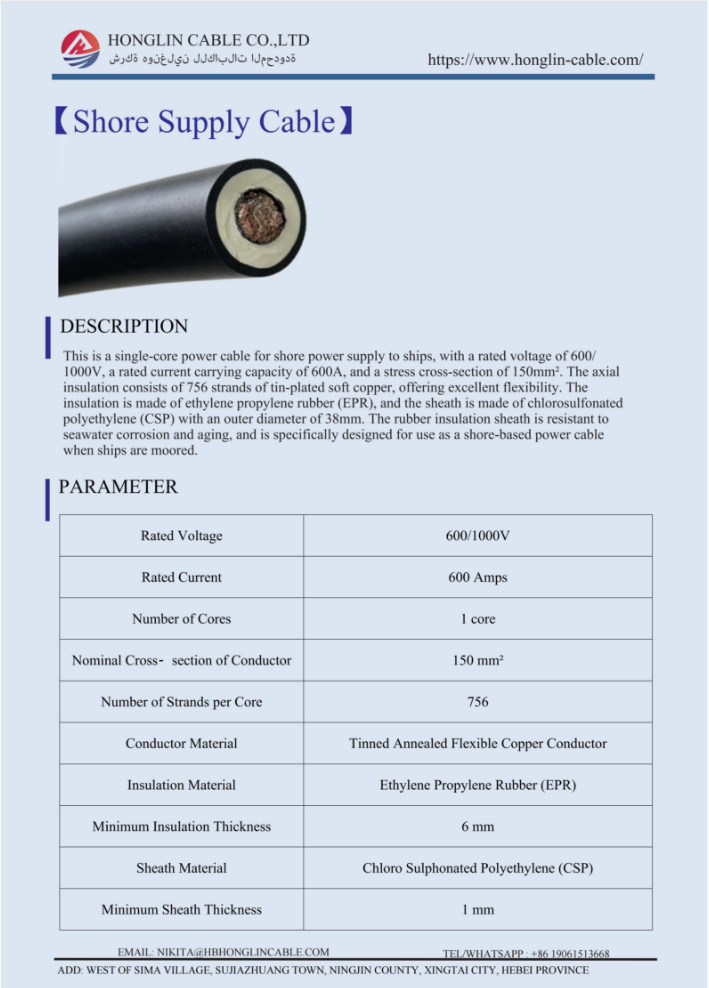

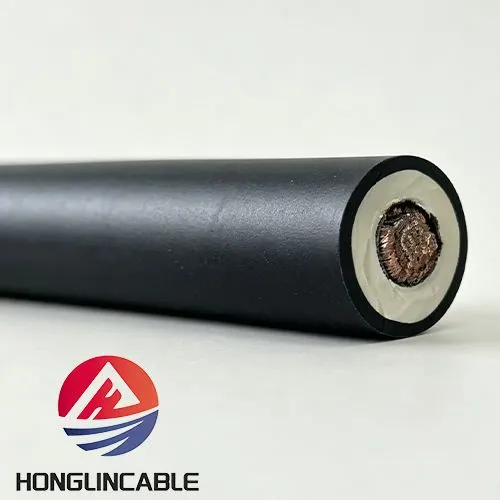

This is a single-core power cable for shore power supply to ships, with a rated voltage of 600/1000V, a rated current carrying capacity of 600A, and a conductor cross-section of 150mm². The conductor is made of 756 strands of tin-plated annealed soft copper, offering excellent flexibility; the insulation is made of ethylene propylene rubber (EPR), and the sheath is made of chlorosulfonated polyethylene (CSP) with an outer diameter of 38mm. The rubber insulation sheath is resistant to seawater corrosion and aging, and is specifically designed for high-power shore-based power transmission when ships are docked.
